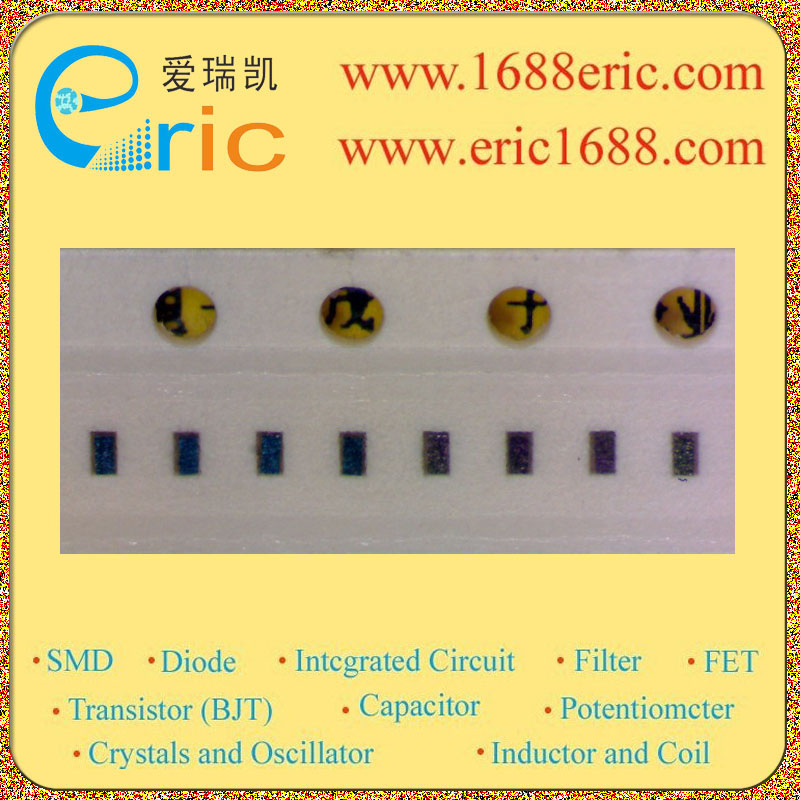

P0402FC05C-T710-2 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5.0V |
| 反向击穿电压VBR
Breakdown Voltage |
6.0V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
250W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
17A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
250w FliP ChiP tvs aRRay；Features ? Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV ? Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns ? ESD Protection > 25 kilovolts ? Available in Voltages Ranging from 3.3V to 36V ? 250 Watts Peak Pulse Power per Line (tp = 8/20μs) ? Protection for 1 Line ? RoHS Compliant ? REACH Compliant |
| 描述与应用 |
250W倒装芯片TVS阵列;特性 ?适用于IEC 61000-4-2（ESD：接触8kV，空气15KV， ?适用于IEC61000-4-4（EFT：40A，5/50ns ?ESD保护>25千伏 ?3.3V至36V电压范围 ?250瓦每线峰值脉冲功率（TP =8/20μS ?保护1线 ?符合RoHS标准 ?符合REACH标准 |
