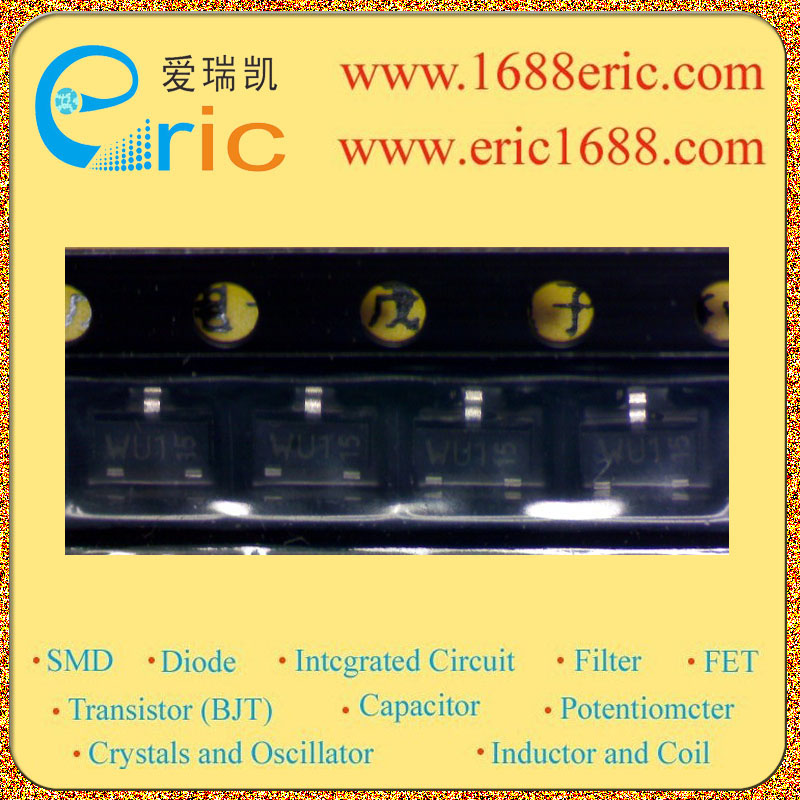

PESD5V2S2UT WU1 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5V |
| 反向击穿电压VBR
Breakdown Voltage |
6.4V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
260W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
15A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Features ? Double ESD protection diodes in SOT23 package ? Uni-directional ESD protection of up to two lines ? Max. peak pulse power: Ppp = 330 W at tp = 8/20 μs ? Low clamping voltage: V(CL)R = 20 V at Ipp = 18 A ? Ultra-low reverse leakage current: IRM < 700 nA ? ESD protection > 23 kV ? IEC 61000-4-2; level 4 (ESD) ? IEC 61000-4-5 (surge); Ipp = 18 A at tp = 8/20 μs |
| 描述与应用 |
特性 ?双SOT23封装ESD保护二极管 ?单向ESD保护可至双线 ?最大峰值脉冲功率：Ppp=330 W@tp= 8/20μs ?低钳位电压：V（CL）R =20 V Ipp=18? ?超低反向漏电流：IRM<700 nA ?ESD保护>23千伏 ?IEC61000-4-2第4级（ESD） ?IEC61000-4-5（浪涌），Ipp=18 A@tp= 8/20μs |
