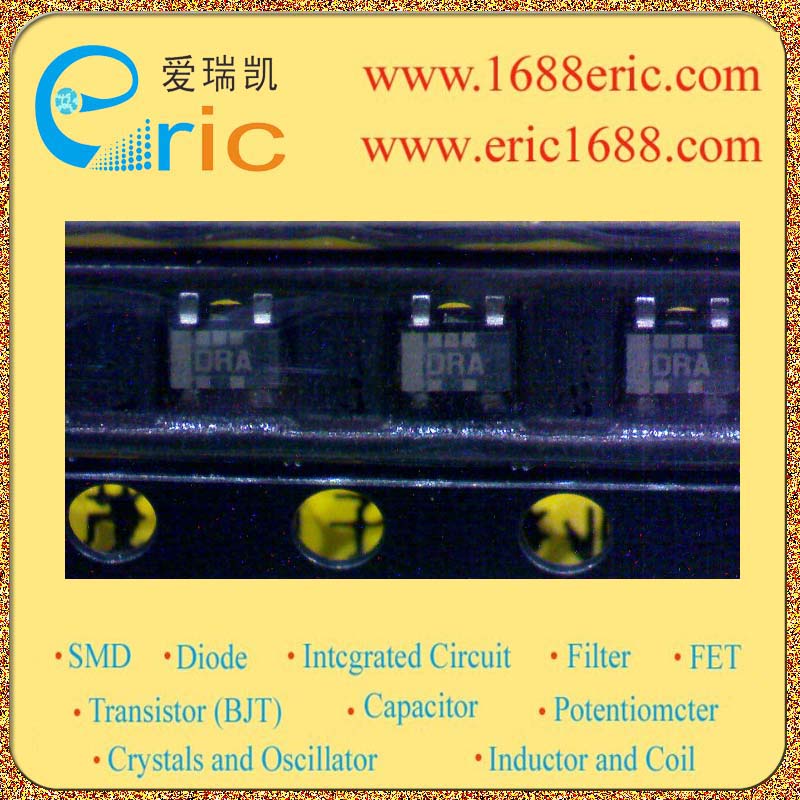

型号： |
S-8110CNB |
| 标记/丝印/代码/打字： |
DRA |
| 厂家： |
SEIKO |
| 封装： |
SOT-343/SC-82AB |
| 批号： |
05+ |
| 库存数量： |
0 |
| 所属分类： |
集成电路ICIntegrated Circuit（IC）
温度传感ICTemperature Sensor |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
S-8110CNB DRA 的参数 |
| 感应温度
Sensing Temperature |
-20℃~80℃ |
|
线性电压 Linear Voltage |
| 输出类型
Output Type |
2.4V~10V |
| 电源电压
Voltage - Supply |
±0.5°C |
| 精度
Accuracy |
CMOS TEMPERATURE SENSOR IC The S-8110C/8120C Series is a family of high-precision temperature sensor ICs on a single chip with a linear output voltage for temperature changes. Each chip is composed of a temperature sensor, a constant current circuit, and an operational amplifier. It can be used at temperatures ranging from ?40°C to +100°C. These devices have much better linearity than other temperature sensors such as thermistors, and can be used for a wide range of temperature control ? Applications ? Compensation of high-frequency circuits such as cellular phones and radio equipment ? Compensation of oscillation frequency in crystal oscillator ? LCD contrast compensation ? Compensation of amplifier gain ? Compensation of auto focus circuits ? Temperature detection in battery management ? Overheating prevention for charged batteries or halogen lights |
| Description & Applications |
在单一芯片上的线性CMOS温度传感器IC S-8110C/8120C系列是一个高精度的温度传感器IC系列 对温度变化的输出电压。 每个芯片构成的温度传感器，一个恒定电流电路，以及运算放大器。 它可用于温度范围从-40°C至+100°C。这些器件具有更好的线性度比 如热敏电阻等温度传感器，可用于广泛的温度控制？应用 ?如蜂窝电话和无线电设备的高频电路补偿 ?在晶体振荡器的振荡频率补偿 ?LCD对比度补偿 ?放大器增益补偿 ?自动对焦电路补偿 ?电池管理方面的温度检测 ?预防过热，充电电池，卤素灯 |
| 描述与应用 |
|
