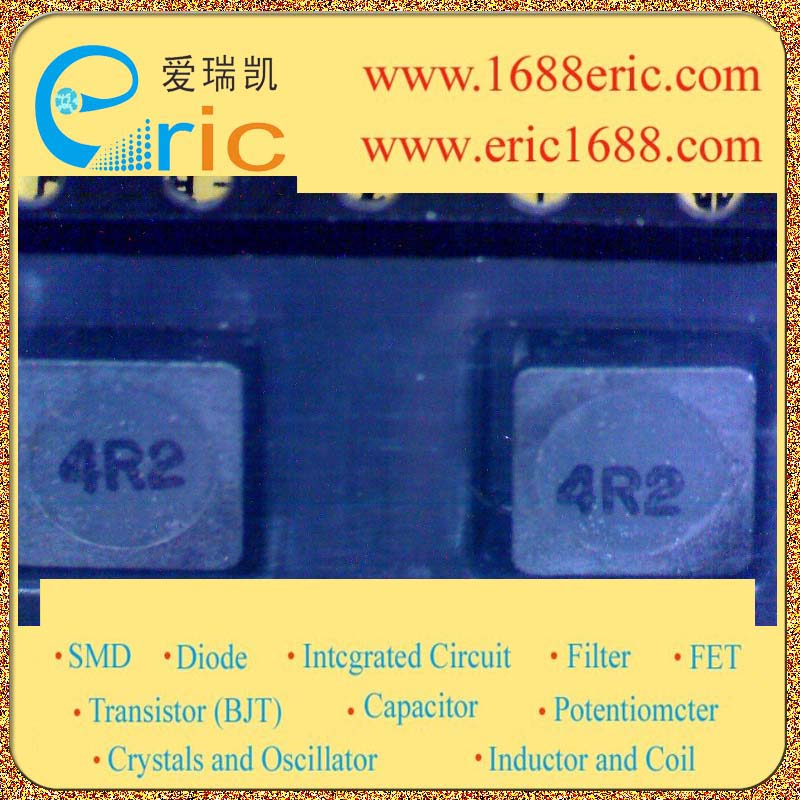

型号： |
SH50284R2YSB |
| 标记/丝印/代码/打字： |
|
| 厂家： |
ABC |
| 封装： |
5M-4R2 |
| 批号： |
05+ |
| 库存数量： |
0 |
| 所属分类： |
电感Inductor/Coil/Choke
功率电感Power Inductor |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
SH50284R2YSB 的参数 |
| Q值
Q Value |
|
| 电感值
Inductance |
4.2uH |
| 误差
Tolerance |
±30% |
| 额定电流
Current Rating |
2500mA |
| 饱和电流
Current - Saturation |
2000mA |
| DC电阻DCR
DC Resistance (DCR) |
0.035Ω/Ohm |
| Description & Applications |
MATERIALS： a﹒Core ：FerriteDR core b﹒Core：Ferrite RI core c﹒Wire ：Enamelled copper wire ( Class F & H) d﹒Adhesive ：Epoxy resin e﹒Terminal：Ag/Ni/Sn f﹒Remark：Products comply with RoHS' requirements GENERAL SPECIFICATION： c﹒Operating temp.：-40℃----+105℃ b﹒Storage temp.：-40℃----+125℃ a﹒Temp. rise ：30℃max. d﹒Resistance to solder heat：260℃.10 secs. |
| 描述与应用 |
MATERIALS： a﹒Core ：FerriteDR core b﹒Core：Ferrite RI core c﹒Wire ：Enamelled copper wire ( Class F & H) d﹒Adhesive ：Epoxy resin e﹒Terminal：Ag/Ni/Sn f﹒Remark：Products comply with RoHS' requirements GENERAL SPECIFICATION： c﹒Operating temp.：-40℃----+105℃ b﹒Storage temp.：-40℃----+125℃ a﹒Temp. rise ：30℃max. d﹒Resistance to solder heat：260℃.10 secs. |
