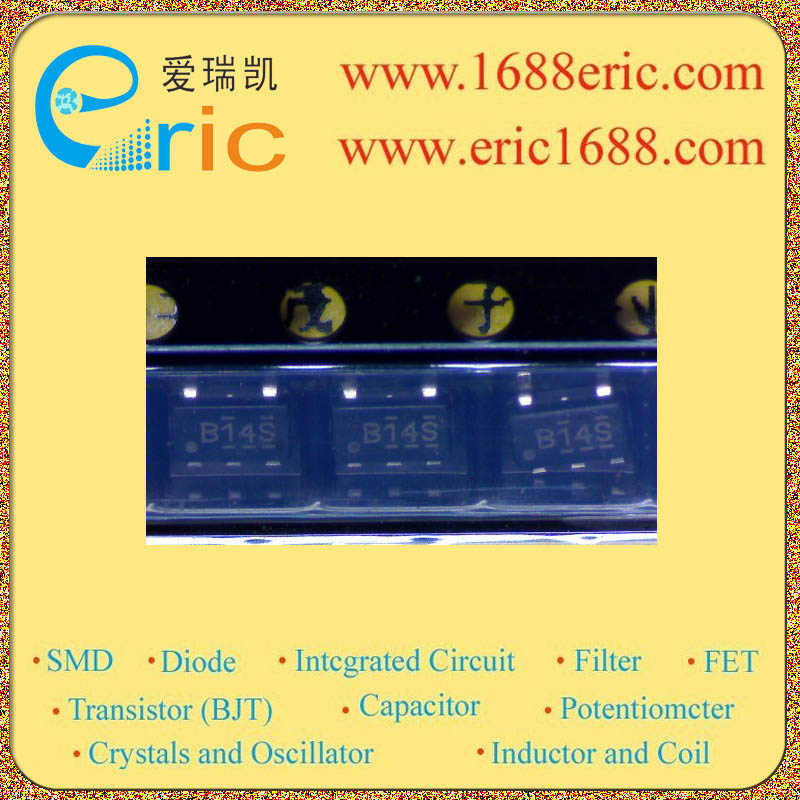

SN74AHCT1G14DBVR B14 的参数 |
| 逻辑类型
Logic Type |
反相施密特触发器 Inverting Schmitt trigger |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
1 |
| 电源电压Vcc
Voltage - Supply |
4.5V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
10uA |
| 输出高，低电平电流
Current - Output High, Low |
-8mA,8mA |
| 低逻辑电平
Logic Level - Low |
|
| 高逻辑电平
Logic Level - High |
|
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
5.5ns @ 0.5V，50pF |
| Description & Applications |
SINGLE SCHMITT-TRIGGER INVERTER GATE ；Operating Range of 4.5 V to 5.5 V Max tpd of 7.1 ns at 5 V Low Power Consumption, 10-μA Max ICC ±8-mA Output Drive at 5 V Inputs Are TTL-Voltage Compatible Latch-Up Performance Exceeds 250 mA Per JESD 17 |
| 描述与应用 |
施密特触发器逆变器器门;工作电压范围为4.5 V至5.5 V 最大5 V时为7.1 ns吨 低功耗，10μA最大ICC ±8 mA输出驱动在5 V？ 输入是TTL电压兼容 闭锁性能超过250 mA每 JESD17 |
