SN74AHCT1G32DCKR BG 的参数 |
| 逻辑类型
Logic Type |
或门 OR Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
4.5V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
10uA |
| 输出高，低电平电流
Current - Output High, Low |
-8mA,8mA |
| 低逻辑电平
Logic Level - Low |
0.8V |
| 高逻辑电平
Logic Level - High |
2V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
5.5ns @ 0.5V，50pF |
| Description & Applications |
SINGLE 2-INPUT POSITIVE-OR GATE ; EPIC(Enhanced-Performance Implanted CMOS) Process Inputs Are TTL-Voltage Compatible Latch-Up Performance Exceeds 250 mA Per JESD 17 Package Options Include Plastic Small-Outline Transistor (DBV, DCK) Packages |
| 描述与应用 |
单2输入正或门; EPIC（增强型注入 CMOS）工艺 ?输入是TTL电压兼容 ?闭锁性能超过250 mA每 JESD17 ?包装选项包括塑料 小外形晶体管（DBV，DCK） 套餐 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |

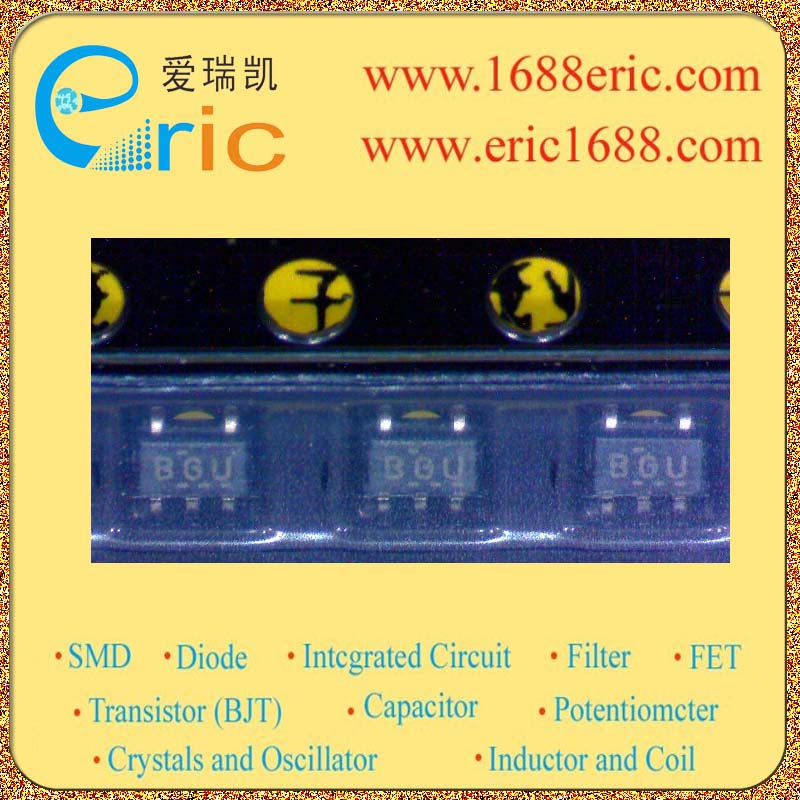

| SN74AHCT1G32DCKR |
BGU |
TEXAS |
04+12rnopb |
SOT-353/SC70-5/SC-88A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHCT1G32DCKR |
BG |
TEXAS |
04+NOPB474.2K |
SOT-353/SC70-5/SC-88A |
483700 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHCT1G32DCKR |
bgs |
TEXAS |
05+ |
sot-353 |
5000 |
|
查看 |
|
|
|
