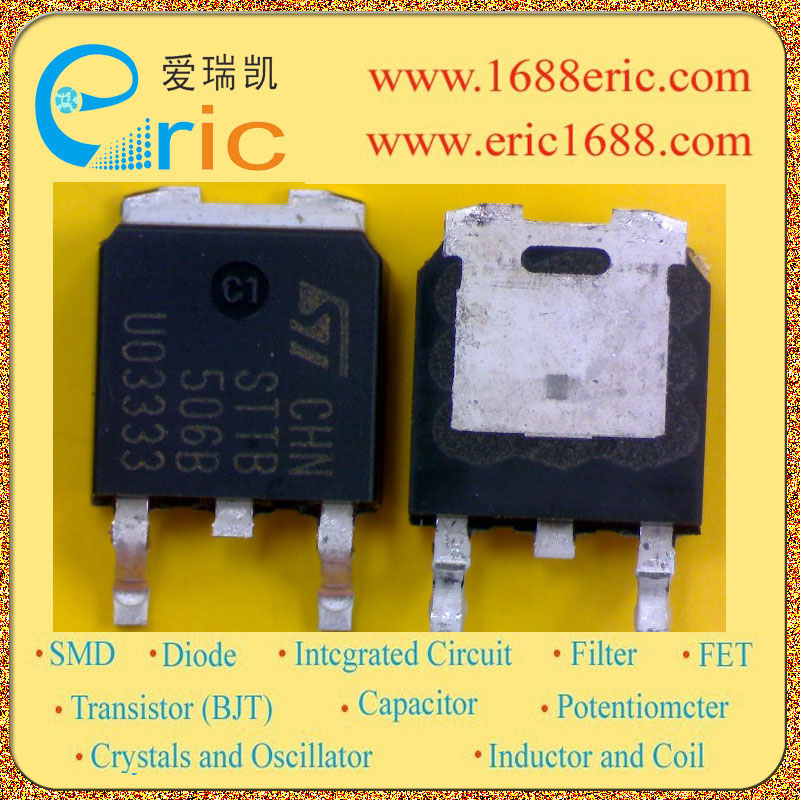

STTB506B-TR 506B 的参数 |
| 反向电压Vr
Reverse Voltage |
600V |
| 平均整流电流Io
Average Rectified Current |
5A |
| 最大正向压降VF
Forward Voltage(Vf) |
1.3V |
| 反向恢复时间Trr
Reverse Recovery Time |
45ns |
| 最大耗散功率Pd
Power Dissipation |
|
| Description & Applications |
FeAtures ? TURBOSWITCHTm "B" . ULTRA-FAST HIGH VOLTAGE DIODE ? SPECIFIC TO THE FOLLOWING OPERATIONS :SNUBBING OR CLAmPING, DEmAGNETIZATION AND RECTIFICATION, FREEWHEEL ORBOOSTER DIODE ? ULTRA-FAST RECOVERY ? VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COmPANION TRANSISTOR ? DESIGNED FOR HIGH PULSED CURRENT OPERATIONS ? SURFACE mOUNT DEVICE ? TAPE AND REEL OPTION : -TR |
| 描述与应用 |
特点 ?TURBO SWITCHTm公司的“B”。超快速高电压二极管 ?具体下列操作： 不压井或夹紧，退磁和整改，FREEWHEEL ORBOOSTER DIODE ?超快速恢复 ?非常低的总体的功率损耗 二极管和同伴 晶体管 ?设计用于高脉冲的的当前作战行动负责人 ?表面贴装器件 ?卷带式选项：-TR |
