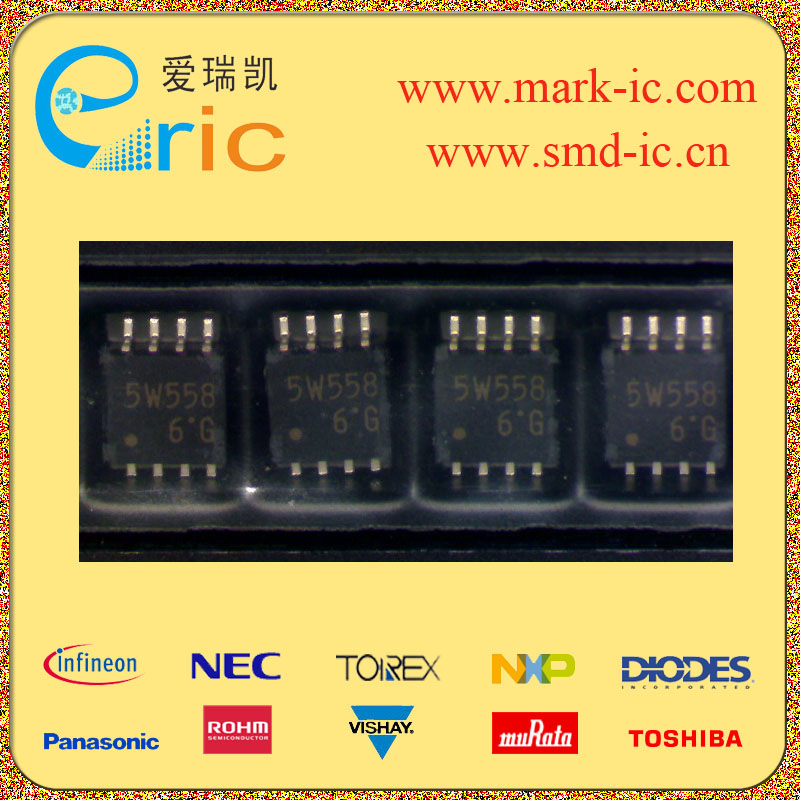

TA75W558FU 5W558 的参数 |
| 电路数
Number of Circuits |
2 |
| 转换速率
Slew Rate |
1V/μs |
| 增益带宽积
Gain Bandwidth Product |
3MHz |
| 共模抑制比
Common Mode Rejection Ratio |
90dB |
| -3db 带宽
-3db Bandwidth |
|
| 输入偏置电流
Current - Input Bias |
60nA |
| 输入失调电压
Voltage - Input Offset |
0.5mV |
| 电源电流
Current - Supply |
4mA |
| 电流 - 输出/通道
Current - Output / Channel |
40mA |
| 电压 - 电源，单/双 (±)
Voltage - Supply, Single/Dual (±) |
±4 V ~ 18 V |
| Description & Applications |
dual operational amplifier low-noise monolithic precision operational amplifier |
| 描述与应用 |
双运算放大器 低噪声单片精密运算放大器 |
