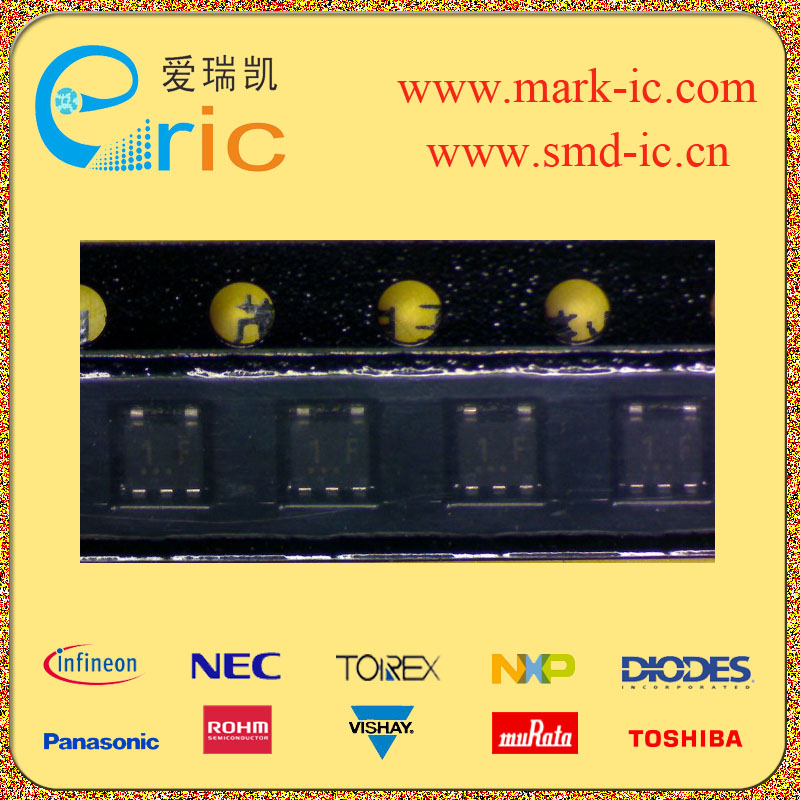

TA76L431FT 1F 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
2.49V~19V |
| 输出电压VOUT
Voltage - Output |
2.49V~19V |
| 输出电流Io
Current - Output |
40mA |
| 最大压降VDO
Voltage - Dropout |
|
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
|
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic。
*2.49-V Adjustable High-Precision Shunt Regulators 。
* These devices are adjustable high-precision shunt regulators
whose output voltage (VKA) can be set arbitrarily using two
external resistors.
* The devices have a precise internal reference voltage of 2.49 V,
enabling them to operate at low voltage. In addition, they can be
used as zener diodes to perform temperature compensation.
* Precision reference voltage
: VREF = 2.49V ± 1.0% (Ta = 25oC)
* Adjustable output voltage
: VREF ≤ VOUT ≤ 19 V
* Minimum cathode current for regulation
:Ikmin = 0.5 mA (max.)
* Operating temperature: Ta = −40~85oC |
| 描述与应用 |
东芝双极型线性集成电路硅单片。
*2.49-V可调高精度分流稳压器。
*这些设备是可调节的高精度分流稳压器
其输出电压（维生素K拮抗剂）可任意设定使用两个
外部电阻器。
*这些器件具有精确的内部参考电压为2.49 V，
使他们能够在低电压下工作。此外，它们可以是
作为齐纳二极管来进行温度补偿。
*精密参考电压
VREF=2.49V±1.0％（大= 25oC）
*可调输出电压
VREF≤VOUT≤19 V
*最小阴极电流调节
：Ikmin=0.5毫安 |
