型号： |

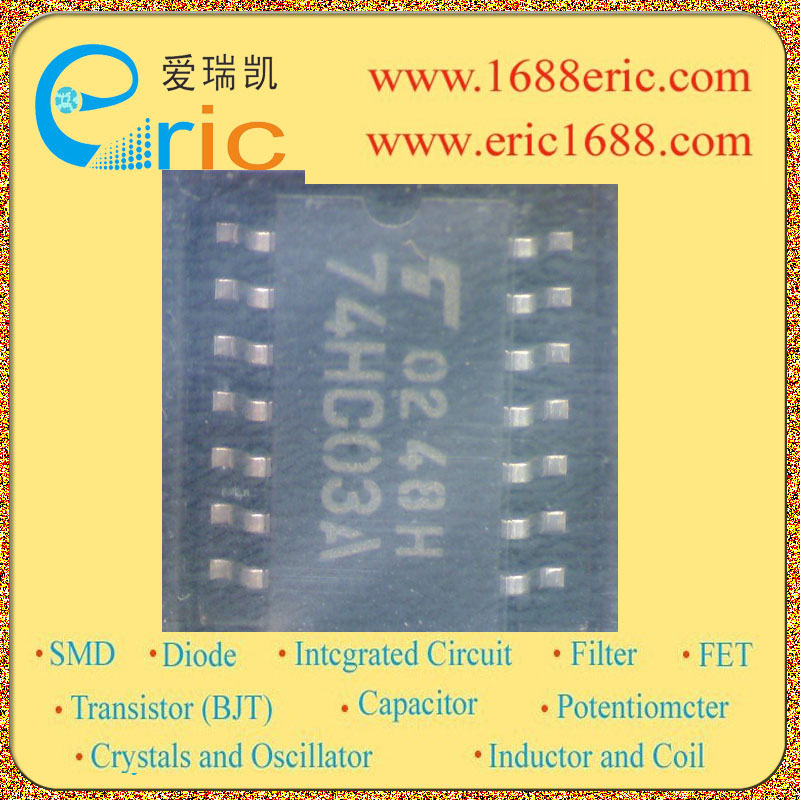

TC74HC03AF-EL |
| 标记/丝印/代码/打字： |
|
| 厂家： |
TOSHIBA |
| 封装： |
SOP14 |
| 批号： |
05+ |
| 库存数量： |
45 |
| 所属分类： |
集成电路ICIntegrated Circuit（IC）
逻辑电路Logic circuit
逻辑门Gate |
| 技术文档PDF： |
 在线阅读(1) (2) |
| |
|
| 在线购买 |
|
|
|
|
TC74HC03AF-EL 的参数 |
| 逻辑类型
Logic Type |
与非门 NAND Gate |
| 电路数
Number of Circuits |
4 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2V~6V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-,5.2mA |
| 低逻辑电平
Logic Level - Low |
0.5 V ~ 1.8 V |
| 高逻辑电平
Logic Level - High |
1.5 V ~ 4.2 V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
13ns @ 6V，50pF |
| Description & Applications |
Quad 2-Input NAND Gate (open drain) ；Features ? High speed: tpz = 5 ns (typ.) at VCC = 5 V ? Low power dissipation: ICC = 1 μA (max) at Ta = 25°C ? High noise immunity: VNIH = VNIL = 28% VCC (min) ? Output drive capability: 10 LSTTL loads ? Wide operating voltage range: VCC (opr) = 2~6 V ? Open drain structure ? Pin and function compatible with 74LS03 |
| 描述与应用 |
四路2输入与非门（开漏）;特点 ?高速：TPZ=5纳秒（典型值），VCC= 5 V ?低功耗：ICC=1μA（最大值）在大= 25°C ?高噪声，免疫力：VNIH= VNIL=28％VCC（分钟） ?输出驱动能力：10输入通道负载 ?宽工作电压范围：VCC（OPR）=2?6 V ?开漏结构 ?引脚和功能兼容74LS03 |
| 技术文档PDF下载 |
在线阅读(1) (2) |
|
|
|
|
|
