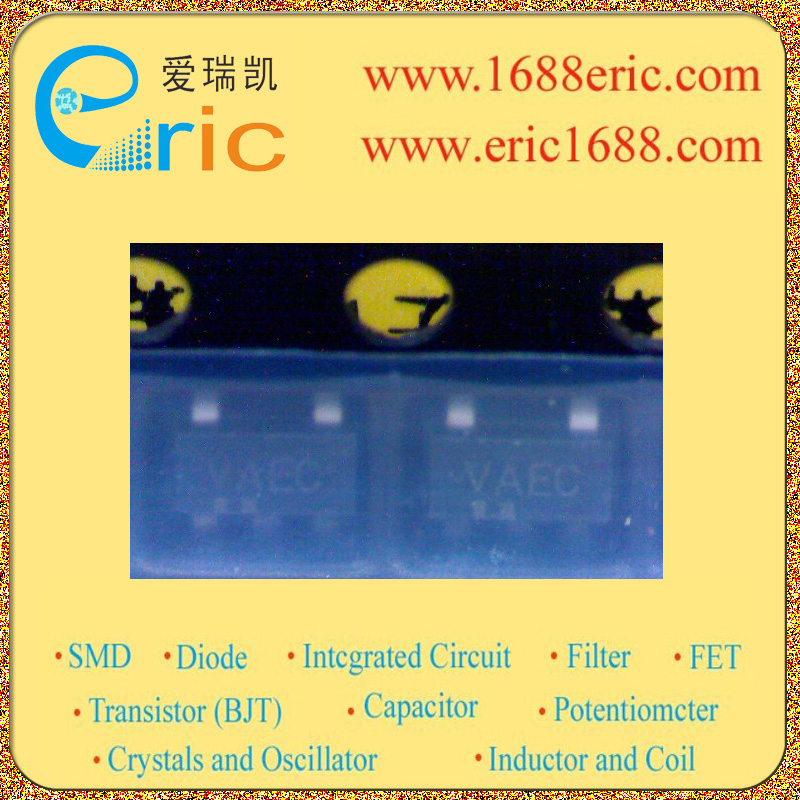

TLV2231CDBVR VA 的参数 |
| 电路数
Number of Circuits |
1 |
| 转换速率
Slew Rate |
1.6V/μs |
| 增益带宽积
Gain Bandwidth Product |
2MHz |
| 共模抑制比
Common Mode Rejection Ratio |
70dB |
| -3db 带宽
-3db Bandwidth |
|
| 输入偏置电流
Current - Input Bias |
1pA |
| 输入失调电压
Voltage - Input Offset |
0.71mV |
| 电源电流
Current - Supply |
850μA |
| 电流 - 输出/通道
Current - Output / Channel |
50mA |
| 电压 - 电源，单/双 (±)
Voltage - Supply, Single/Dual (±) |
2.7 V ~ 10 V，±1.35 V ~ 5 V |
| Description & Applications |
Low Noise Low Input Bias Current Common-Mode Input Voltage Range Includes Negative Rail High Gain Bandwidth High Slew Rate Wide Supply Voltage Range Advanced LinCMOS RAIL-TO-RAIL LOW-POWER SINGLE OPERATIONAL AMPLIFIERS |
| 描述与应用 |
低噪声 低输入偏置电流 共模输入电压范围包括负轨 高增益带宽 高转换速率 宽的电源电压范围；高级LinCMOS轨至轨 低功耗的单运算放大器 |
