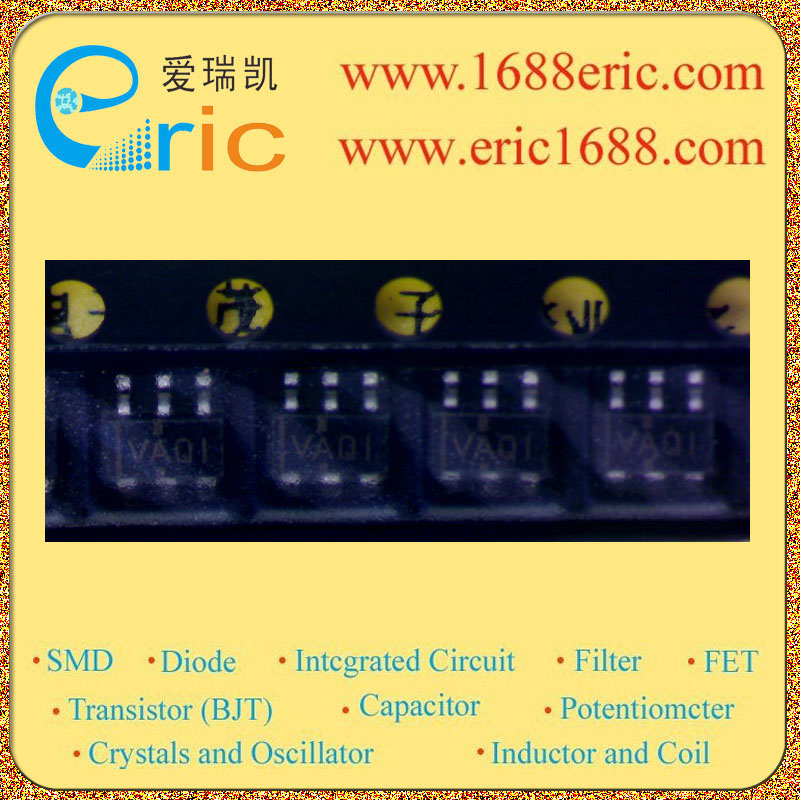

TLV2450IDBVT VA 的参数 |
| 电路数
Number of Circuits |
1 |
| 转换速率
Slew Rate |
0.11V/μs |
| 增益带宽积
Gain Bandwidth Product |
0.22MHz |
| 共模抑制比
Common Mode Rejection Ratio |
80dB |
| -3db 带宽
-3db Bandwidth |
|
| 输入偏置电流
Current - Input Bias |
0.5nA |
| 输入失调电压
Voltage - Input Offset |
0.3mV |
| 电源电流
Current - Supply |
23μA |
| 电流 - 输出/通道
Current - Output / Channel |
10mA |
| 电压 - 电源，单/双 (±)
Voltage - Supply, Single/Dual (±) |
2.7 V ~ 6 V，±1.35 V ~ 3 V |
| Description & Applications |
Ultralow-Power Shutdown Rail-To-Rail Input/Output (RRIO)； rail-to-rail input/output operational amplifiers much higher than competitive devices with similar supply current levels. portable medical equipment, patient monitoring systems, and data acquisition circuits. |
| 描述与应用 |
超低功耗关闭 轨到轨输入/输出(RRIO)；轨到轨输入/输出运算放大器 远远高于竞争的设备与电源电流水平 便携式医疗设备、病人监护系统和数据采集电路。 |
