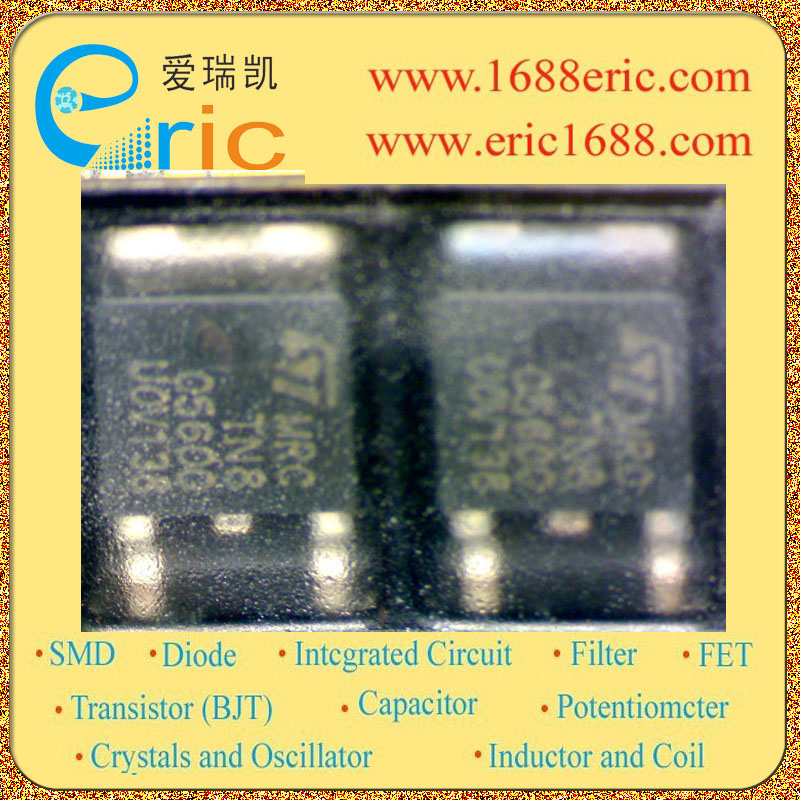

TN805-600B-TR TN805600 的参数 |
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM
Repetitive peak reverse voltage/Repetitive peak off-state voltage |
600V-1000V |
| 通态平均电流IT(AV)
Average on-state current |
5A |
| 通态最大电流IT(RMS)
RMS on-state current |
8A |
| 栅极触发电压VGT
Gate trigger voltage |
0.8V |
| 栅极触发电流IGT
Gate trigger current |
200μA |
| 保持电流IH
Holding current |
5mA |
| 峰值通态电压VTM
On-state voltage |
1.6V |
| 重复峰值断态电流IDRM
Repetitive peak off-state current |
5μA |
| 浪涌电流ITSM(50Hz、60Hz)
Current - Non Rep. Surge 50, 60Hz (Itsm) |
73A |
| Description & Applications |
THYRISTOR(Surface Mount Device/Non-isolated) overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capacitive discharg Available in through-hole or surface-mount packages, they provide an optimized performance in a limited space area |
| 描述与应用 |
晶闸管（表面贴装设备/非隔离） 过压电路保护，在电动工具和厨房辅助电机控制电路，浪涌电流限制电路，电容放电 可在通孔或表面贴装封装，在有限的空间区域他们提供了一个优化的性能 |
