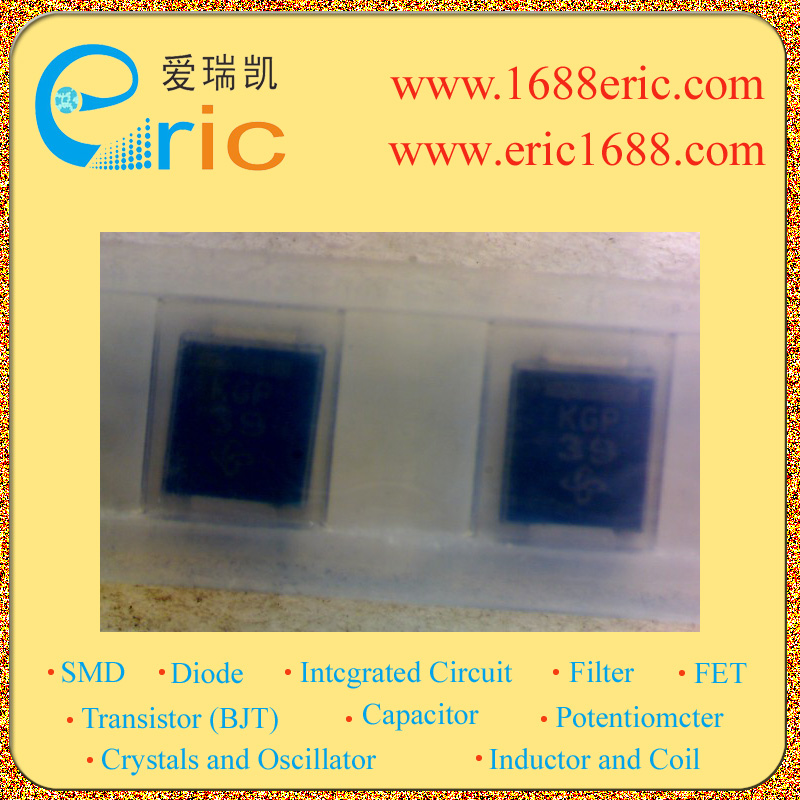

TPSMB7.5A KGP 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
6.40V |
| 反向击穿电压VBR
Breakdown Voltage |
7.5V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
600W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
53.1A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Specification Features: ?Vishay General Semiconductor ?Surface Mount Automotive Transient Voltage Suppressors High Temperature Stability and High Reliability Conditions ?Patented PAR? construction ?Available in uni-directional polarity only ?600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 % ?Excellent clamping capability ?Very fast response time ?Low incremental surge resistance ?Meets MSL level 1, per J-STD-020C, LF max peak of 260 °C ?Solder dip 260 °C, 40 seconds ?Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC |
| 描述与应用 |
规格特点： ?威世通用半导体 ?表面贴装汽车瞬态电压抑制器的高温稳定性和高可靠性的条件 ?专利的PAR?建设 ?只可在单向极性 ?600瓦峰值脉冲功率能力与10/1000μs波形，重复率（占空比）：0.01％ ?出色的钳位能力 ?非常快的响应时间 ?低增量浪涌电阻 ?会见MSL每1，J-STD-020C，LF最大峰值为260°C ?浸焊260°C，40秒 ?组件按照RoHS 2002/95/EC和WEEE2002/96/EC |
