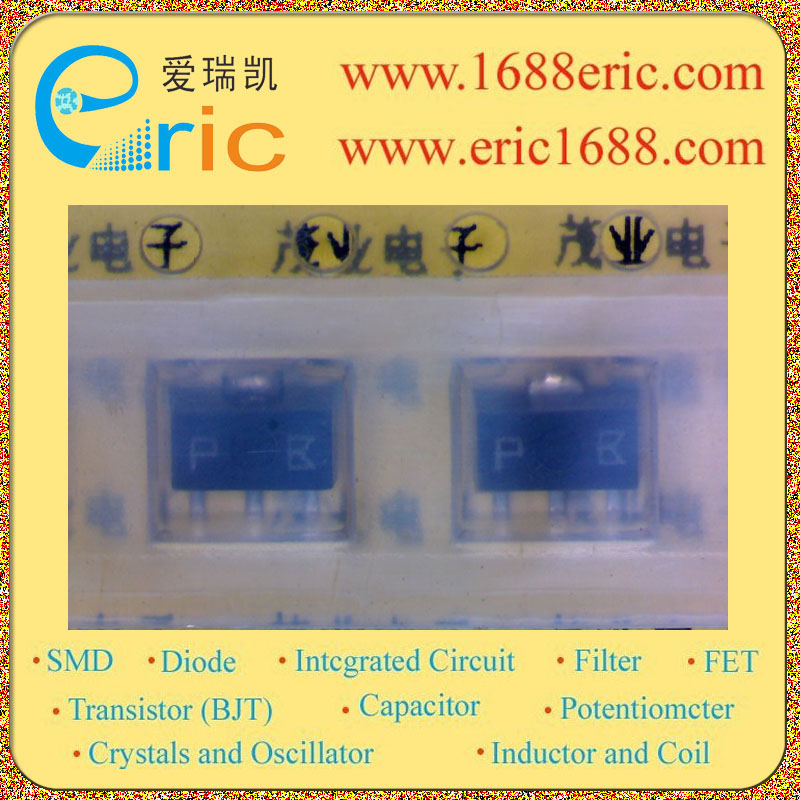

URSF05G49-1P PB 的参数 |
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM
Repetitive peak reverse voltage/Repetitive peak off-state voltage |
400V |
| 通态平均电流IT(AV)
Average on-state current |
500mA |
| 通态最大电流IT(RMS)
RMS on-state current |
800mA |
| 栅极触发电压VGT
Gate trigger voltage |
0.8V |
| 栅极触发电流IGT
Gate trigger current |
700μA |
| 保持电流IH
Holding current |
6mA |
| 峰值通态电压VTM
On-state voltage |
1.5V |
| 重复峰值断态电流IDRM
Repetitive peak off-state current |
10μA |
| 浪涌电流ITSM(50Hz、60Hz)
Current - Non Rep. Surge 50, 60Hz (Itsm) |
9A/10A |
| Description & Applications |
THYRISTOR SILICON PLANAR TYPE LOW POWER SWITCHING AND CONTROL APPLICATIONS Repetitive Peak Off?State Voltage : VDRM = 400V Repetitive Peak Reverse Voltage : VRRM = 400V Average On?State Current : IT (AV) = 500mA Reduce a Quantity of Parts and Manufacturing Process Because of Built?in RGK |
| 描述与应用 |
晶闸管硅平面型 小功率开关和控制应用 重复峰值断态电压：VDRM=400V 重复峰值反向电压VRRM= 400V 平均通态电流IT（AV）=500毫安 由于内置RGK减少了部件数量和制造工艺 |
