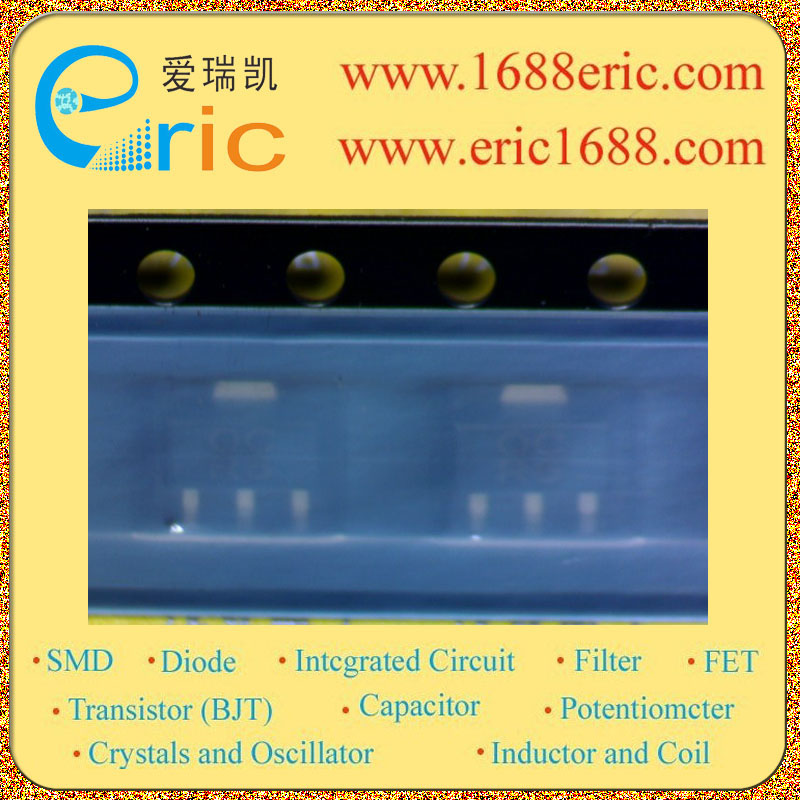

UTCMCR100-6 QC 的参数 |
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM
Repetitive peak reverse voltage/Repetitive peak off-state voltage |
400V |
| 通态平均电流IT(AV)
Average on-state current |
|
| 通态最大电流IT(RMS)
RMS on-state current |
0.8A |
| 栅极触发电压VGT
Gate trigger voltage |
0.62V |
| 栅极触发电流IGT
Gate trigger current |
40μA |
| 保持电流IH
Holding current |
0.5mA |
| 峰值通态电压VTM
On-state voltage |
1.7V |
| 重复峰值断态电流IDRM
Repetitive peak off-state current |
10μA |
| 浪涌电流ITSM(50Hz、60Hz)
Current - Non Rep. Surge 50, 60Hz (Itsm) |
10A |
| Description & Applications |
SENSITIVE GATE SILICON CONTROLLED RECTIFIERS REVERSE BLOCKING THYRISTORS Sensitive gate allows triggering by micro controllers and other logic circuits Blocking voltage to 600V On-state current rating of 0.8A RMS at 80°C High surge current capability – 10A Glass-passivated surface for reliability and uniformity |
| 描述与应用 |
敏感的门可控硅 可控整流器 反向阻断晶闸管 敏感的门允许触发微控制器和其他逻辑电路 阻断电压为600V 在80℃时，0.8A有效值通态电流额定值 高浪涌电流能力 - 10A 表面玻璃钝化的可靠性和一致性 |
