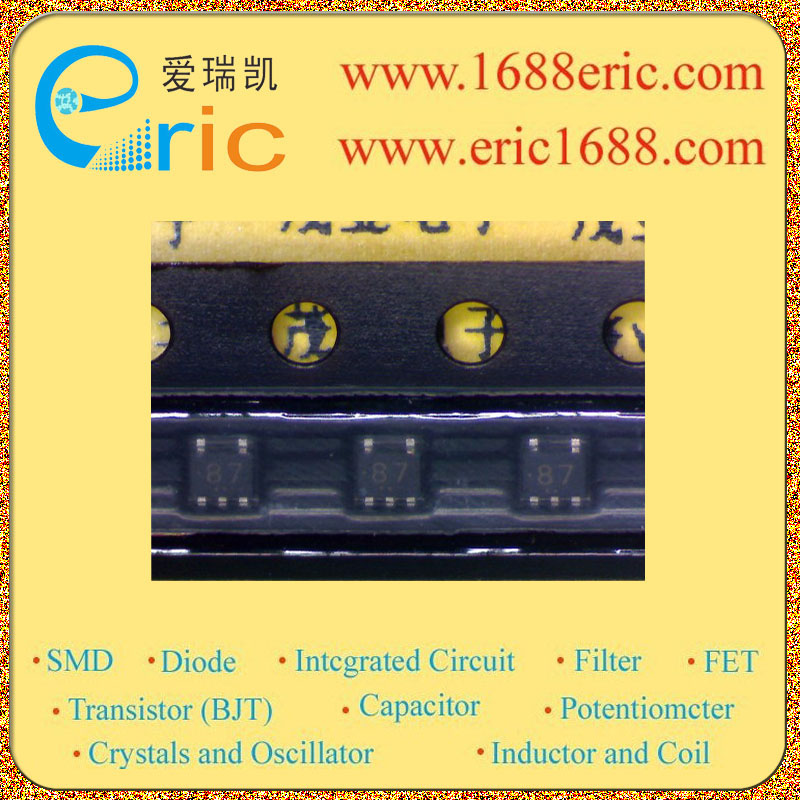

RN47A7JE 87 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V/-50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V/-50V |
| 集电极连续输出电流IC
Collector Current(IC) |
100mA/-100mA |
| Q1基极输入电阻R1
Input Resistance(R1) |
10KΩ/Ohm |
| Q1基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
10KΩ/Ohm |
| Q1电阻比(R1/R2)
Q1 Resistance Ratio |
1 |
| Q2基极输入电阻R1
Input Resistance(R1) |
4.7KΩ/Ohm |
| Q2基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
10KΩ/Ohm |
| Q2电阻比(R1/R2)
Q2 Resistance Ratio |
0.47 |
| 直流电流增益hFE
DC Current Gain(hFE) |
50 |
| 截止频率fT
Transtion Frequency(fT) |
250MHz/200MHz |
| 耗散功率Pc
Power Dissipation |
100mW/0.1W |
| Description & Applications |
Features ? TOSHIBA Transistor Silicon NPN·PNP Epitaxial Type (PCT process) (Bias Resistor built-in Transistor) ? Two devices are incorporated into an Extreme-Super-Mini (5 pin) package. ? Incorporating a bias resistor into a transistor reduces parts count.Reducing the parts count enable the manufacture of ever more compact equipment and save assembly cost. Applications ? Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications. |
| 描述与应用 |
特点 ?东芝晶体管的硅NPN·PNP外延型的（PCT程序）（偏置电阻晶体管） ?两个设备都纳入一个极端超小型（5针）封装。 ?将偏置电阻晶体管，减少了部件数量。减少零件数，使制造比以往更紧凑的设备和装配成本。 应用 ?开关，逆变电路，接口电路和驱动器电路应用 |
