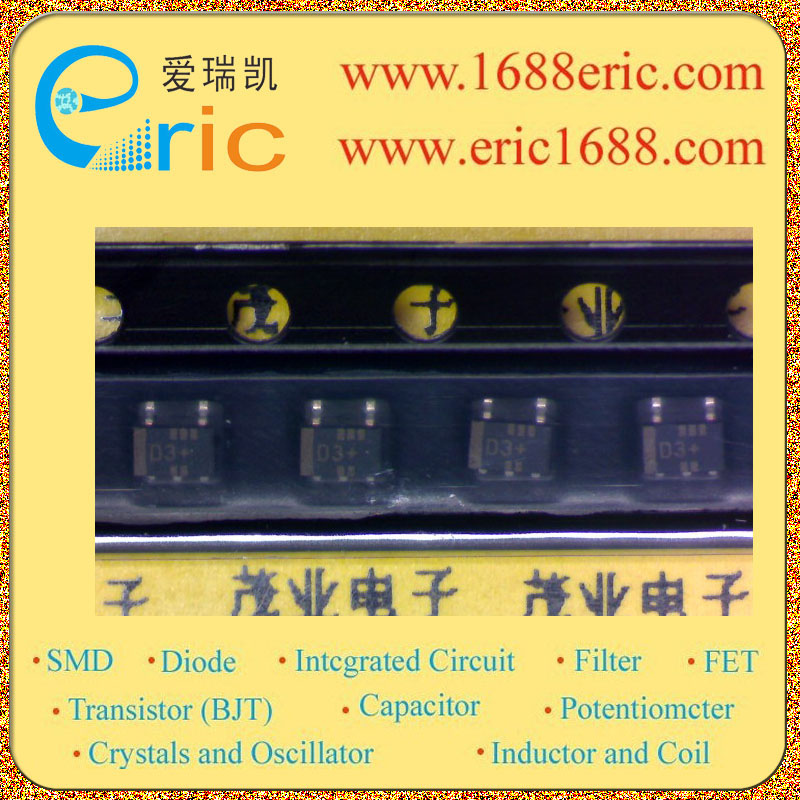

RD3CYD08CME D3 的参数 |
| 逻辑类型
Logic Type |
与门 AND Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2.0V~3.6V |
| 静态电流Iq
Current - Quiescent (Max) |
10uA |
| 输出高，低电平电流
Current - Output High, Low |
|
| 低逻辑电平
Logic Level - Low |
0.7V~0.8V |
| 高逻辑电平
Logic Level - High |
1.7V~2.0V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
|
| Description & Applications |
IGBT Driver ；Features Supplied on emboss taping for high-speed automatic mounting Supply voltage range : 2.0 to 3.6 V Operating temperature range : –40 to +85°C High drive current IOH short = –130 mA (typ) (@VCC = 3.3 V) Low sink current IOL short = 45 mA (typ) (@VCC = 3.3 V) |
| 描述与应用 |
IGBT驱动器;特性 提供压纹盘带高速自动安装 电源电压范围：2.0?3.6伏 工作温度范围：-40至+85°C 高驱动电流 IOH短=-130毫安（典型值）（@ VCC= 3.3 V） 低灌电流 IOL短=45毫安（典型值）（@ VCC = 3.3 V） |
