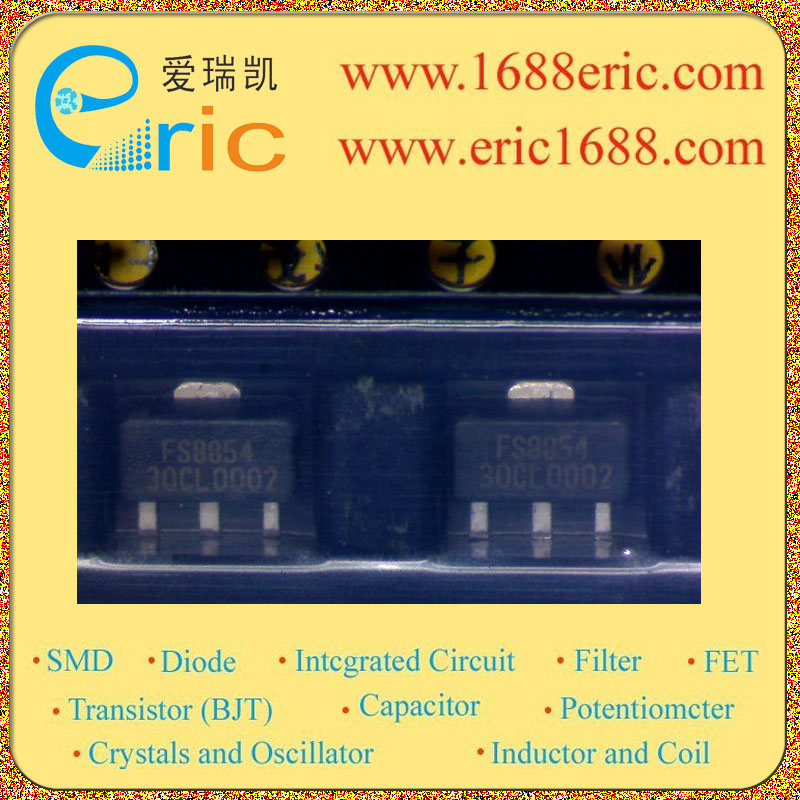

FS8854-30CL FS8854 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
2.5~6.5V |
| 输出电压VOUT
Voltage - Output |
3V |
| 输出电流Io
Current - Output |
350mA/0.35A |
| 最大压降VDO
Voltage - Dropout |
500mV/0.5V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
无 No |
| 最大耗散功率Pd
Power dissipation |
550mW/0.55W |
| Description & Applications |
350mA LDO Linear Regulator;?Low dropout voltage 500mV at 350mA (Typ.) ?Up to ±35mV output voltage accuracy ?Preset at 2.5V, 3.3V ? Mask option from 1.3V to 5.0V ?Small output capacitor ?Output current limit ?Thermal overload shutdown protection ?Battery Powered Equipment ?Palmtops ?Portable Cameras and Video Recorders ? Reference Voltage Sources ? Post Regulator for Switching Power ?Reference Voltage Sources ?Post Regulator for Switching Power |
| 描述与应用 |
350毫安LDO线性稳压器;?在350mA的低压差电压500mV的 （典型值） ?高达±35MV输出电压精度 ?预置在2.5V，3.3V ?从1.3V至5.0V的选项 ?小的输出电容 ?输出电流限制 ?过热关断保护 ?电池供电设备 ?掌上电脑 ?便携式相机和录像机 ?参考电压源 ?后稳压开关电源 ?参考电压源 ?后稳压开关电源 |
| 技术文档PDF下载 |
在线阅读  |
