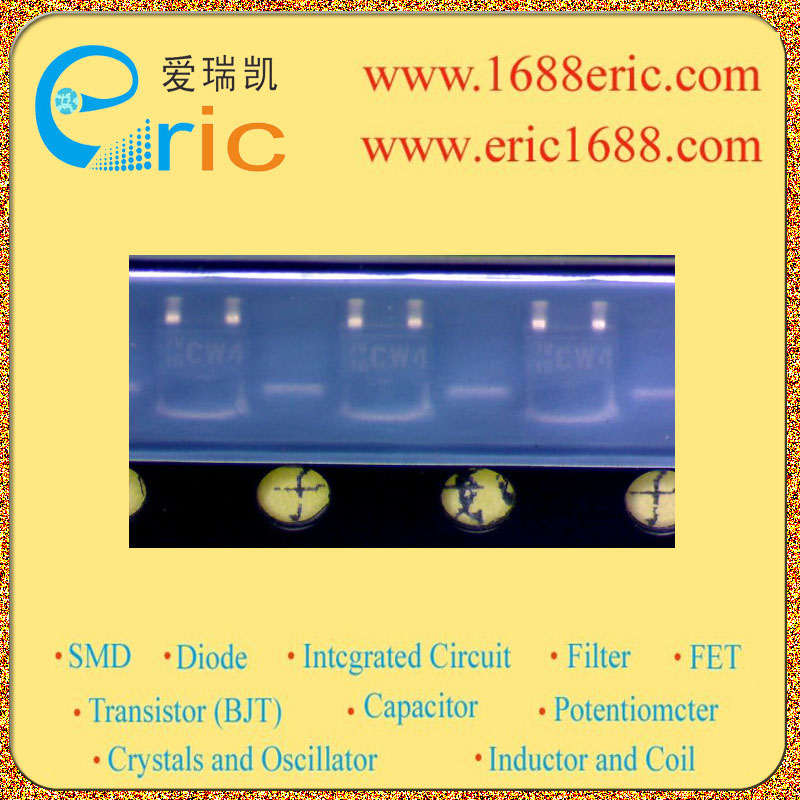

BAR63V-04W CW4 的参数 |
| 反向电压VR
Reverse Voltage |
50V |
| 平均正向整流电流IF
Forward Current(If) |
100mA/0.1A |
| 二极管电容值CT
Diode capacitance |
0.23pF |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
RF PIN Diode - Single in SOT-323 Description Characterized by a very low reverse Capacitance the PIN Diode BAR63V-03W was designed for RF signal tuning. As a function of the forward bias current the forward resistance (rf) can be adjusted to less than 1 ? while the low reverse capacitance offers a high isolation. Typical applications for this PIN Diodes are wireless, mobile and TV-systems. Features ? Low forward resistance ? Very small reverse capacitance ? Lead (Pb)-free component ? Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Applications For frequency up to 3 GHz RF-signal tuning Mobile, wireless and TV-Applications Mechanical Data |
| 描述与应用 |
RF PIN二极管 - 单SOT-323 描述 特点是一个非常低的反向电容 PIN二极管BAR63V-03W设计的RF信号 调整。由于正向偏置电流的函数 的正向电阻（射频）可以调整到小于 1Ω而低反向电容提供了一个高 隔离。这个PIN二极管的典型应用 无线，移动和电视系统。 特点 ??低正向电阻 ??非常小的反向电容 ??铅（Pb）免费组件 ??组件按照RoHS 2002/95/EC 和WEEE 2002/96/EC 应用 对于频率高达3 GHz RF信号调谐 移动，无线和电视应用 机械数据 |
