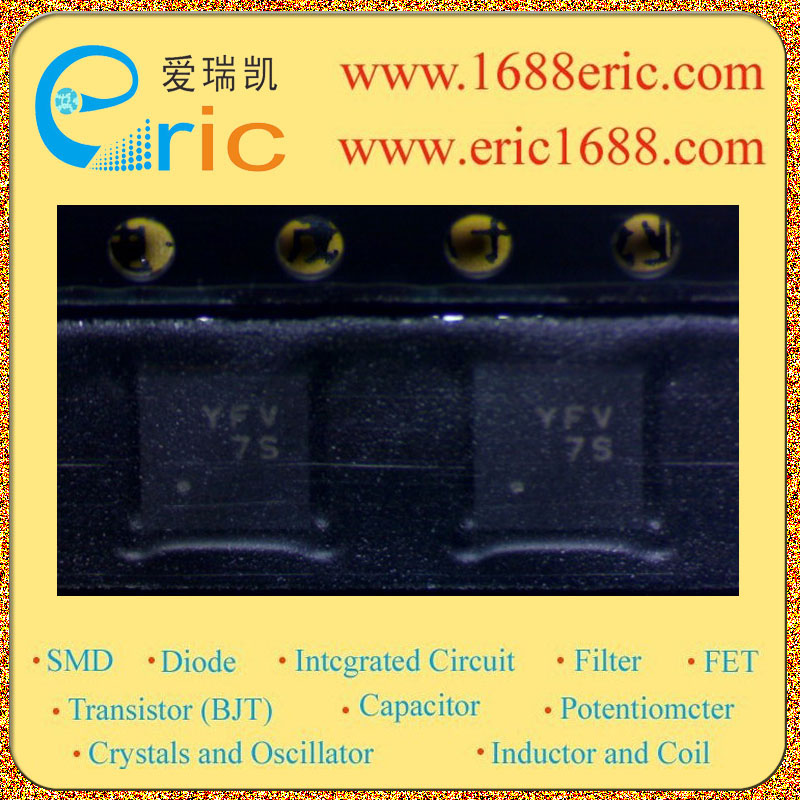

AAT2856INJ-EE-T1 YFV 的参数 |
| 恒流
Constant Current |
|
| 恒压
Constant Voltage |
|
| 拓扑
Topology |
|
| 输出数
Number of Outputs |
6 |
| 内部驱动器
Internal Driver |
|
| 初级类型
Type - Primary |
背光 Backlight |
| 次级类型
Type - Secondary |
LED |
| 频率
Frequency |
2MHz |
| 电源电压
Voltage - Supply |
2.7V ~ 5.5V |
| 输出电压
Voltage - Output |
可调 |
| Description & Applications |
FEATURES ? High Current Charge Pump with Dual LDO for Backlight Applications ? Input Voltage Range: 2.7V to 5.5V ? Tri-Mode Charge Pump: ? Drives up to Six Backlight LEDs ? 32 Programmable Backlight Current Settings Ranging from 115μA to 30mA ? 2MHz Switching Frequency ? Two Linear Regulators: ? 200mA Output Current ? 200mV Dropout Voltage ? Output Voltage Adjustable from 1.2V to VBATTERY ? Output Auto-Discharge for Fast Shutdown ? Individual LDO Enable Inputs ? Built-In Thermal Protection ? Automatic Soft Start ? -40°C to +85°C Temperature Range ? TQFN44-28 Package Applications ? Camera-Enabled Mobile Devices ? Digital Still Cameras ? Multimedia Mobile Phones |
| 描述与应用 |
特点 ?高电流电荷泵背光应用双LDO ?输入电压范围：2.7V至5.5V ?三模式电荷泵： ?驱动多达6个背光LED ?32个可编程背光电流设置 从115μA至30mA ?2MHz的开关频率 ?两个线性稳压器： ?200mA输出电流 ?200mV压差电压 ?可调从1.2V到VBATTERY的输出电压 ?输出自动放电快速关机 ?个人LDO使能输入 ?内置热保护 ?自动软启动 ?-40°C至+85°C温度范围 ?TQFN44-28包装 应用 ?相机功能的移动设备 ?数码相机 ?多媒体手机 |
