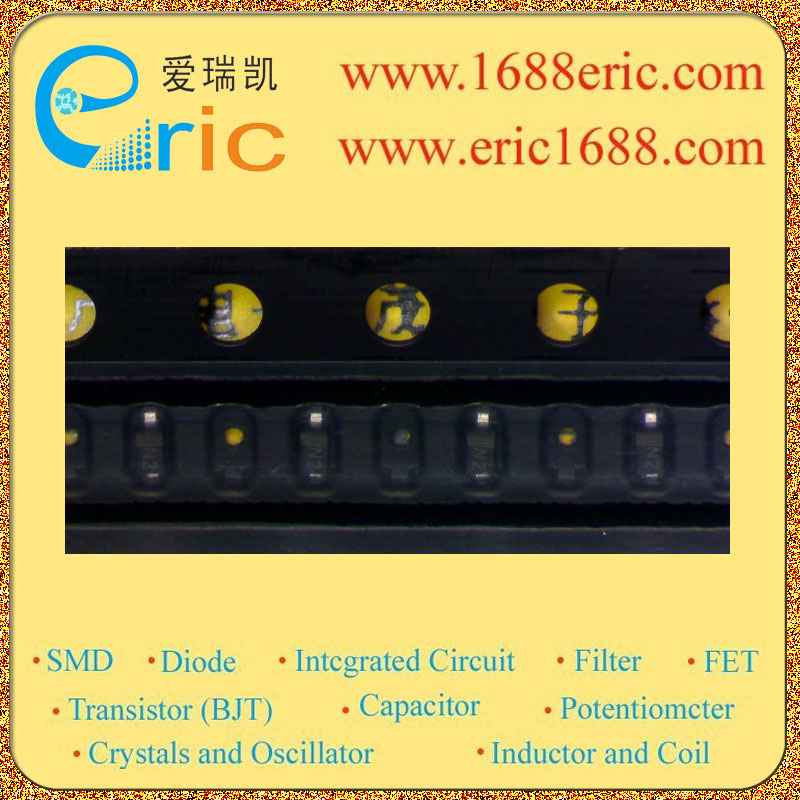

PESD5V0S1UB N2 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5.5V |
| 反向击穿电压VBR
Breakdown Voltage |
6.4V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
260W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
15A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
ESD protection diodes in SOD523 package；Features ? Low capacitance bidirectional ESD protection diodes ? Max. peak pulse power: PPP = 330 W at tp = 8/20 μs ? Low clamping voltage: VCL = 20 V at IPP = 18 A ? Ultra low leakage current: IRM < 700 nA ? ESD protection > 23 kV ? IEC 61000-4-2, level 4 (ESD) ? IEC 61000-4-5 (surge); IPP = 18 A at tp = 8/20 μs |
| 描述与应用 |
SOD523封装的ESD保护二极管;特性 ?低电容双向ESD保护二极管 ?最大峰值脉冲功率：Ppp=330 W@tp= 8/20μs ?低钳位电压：VCL= 20V@ Ipp=18? ?超低漏电流：IRM<700 nA ?ESD保护>23千伏 ?IEC61000-4-2第4级（ESD） ?IEC61000-4-5（浪涌）; Ipp=18 A@tp= 8/20μs |
