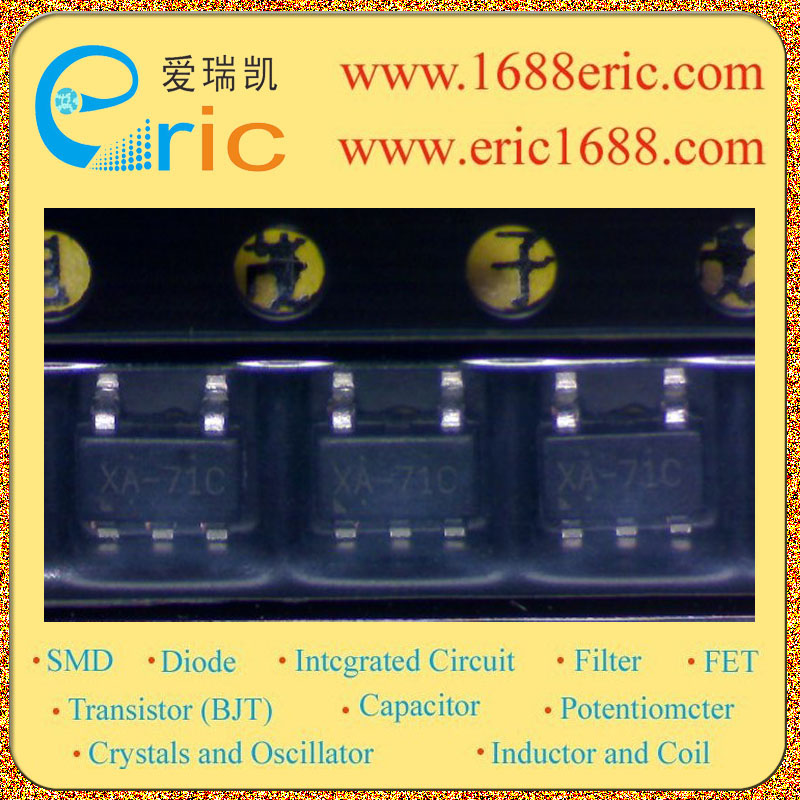

RT9179PB XA-71C 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
6V |
| 输出电压VOUT
Voltage - Output |
可调/adj |
| 输出电流Io
Current - Output |
300mA/0.3A |
| 最大压降VDO
Voltage - Dropout |
300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
有 Yes |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
Adjustable, 300mA LDO Regulator with Enable ;?300mV Dropout @ 300mA ?150uA Low Ground Pin Current ?Excellent Line and Load Regulation ?<1uA Standby Current in Shutdown Mode ?Guaranteed 300mA Output Current ?Stable with 1uF Input and Output Ceramic Capacitor ?Adjustable Output Voltage Ranges from 1.175V to4.5V ?Over-Temperature /Over-Current Protection ?RoHS Compliant and 100% Lead (Pb)-Free |
| 描述与应用 |
可调，300mA LDO稳压器具有使能;?300mV的压降@300毫安 ?150UA低接地引脚电流 ?出色的线路和负载调节 ?<1uA的待机电流关断模式 ?保证300mA输出电流 ?稳定与1uF的输入和输出陶瓷电容器 ?可调输出电压范围从1.175V to4.5V的 ?过温/过电流保护 ?符合RoHS标准，100％无铅（pb）产品 |
| 技术文档PDF下载 |
在线阅读  |
