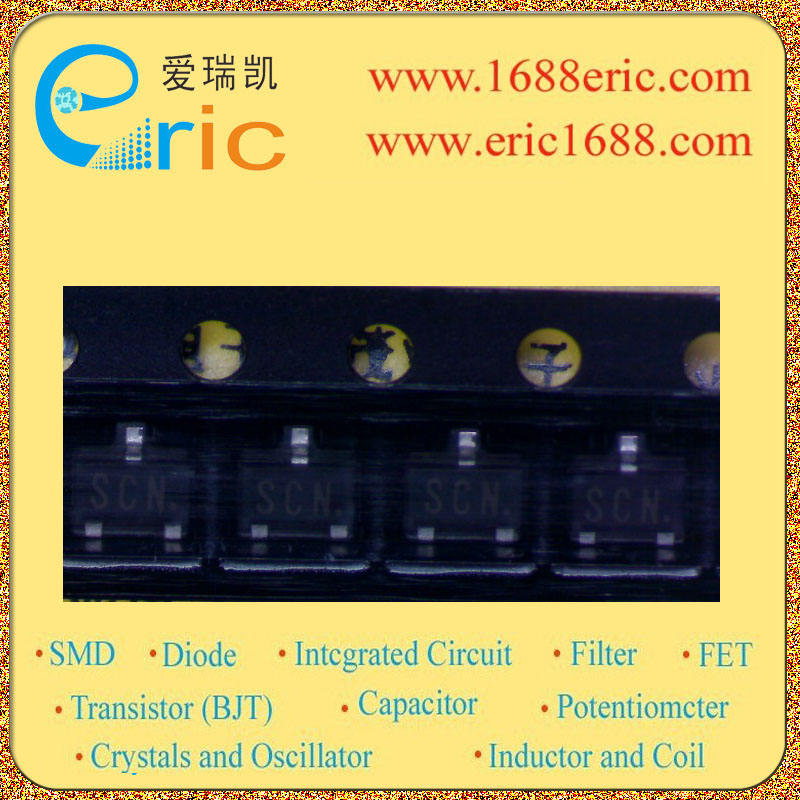

MN1382S-N SCN 的参数 |
| 受检测电压数
Number of Voltages Monitored |
1 |
| 检测电压/复位阈值电压VDET
Voltage - Threshold |
3.55V |
| 工作电压VIN
Voltage - Supply |
7V |
| 高/低有效复位
Reset |
低 Active Low |
| 输出类型
Output Type |
push pull |
| 看门狗
Watchdog |
无 No |
| 功耗Pd
Power Dissipation |
320mW/0.32W |
| Description & Applications |
?CMOS LSIs for Voltage Detection ?Three-pin element requiring no adjustment Wide selection of detection ranks (17 ranks between 2.0 and 4.9 volts) ?Highly precise detection voltage ? Detection voltage with hysteresis characteristic ?VD = 50 mV for ranks C to K ?VD = 100 mV for ranks L to U ?Low current consumption: IDD = 1μA (typ.) for VDD= 5 V ?Wide selection of output types: CMOS output, Nchannel open drain output, and ?inverted CMOS output ?Wide selection of package types: M, TO-92, and a mini type for surface mounting |
| 描述与应用 |
?CMOS LSI的电压检测 ?三针元素，无需调整 ?检测行列（17级之间的选择范围广 2.0和4.9伏） ?高度精确的检测电压 ?检测电压迟滞特性ΔVD到K=50 mV的行列? ΔVD以取得行列L=100毫伏到U ?低功耗：IDD= VDD = 5 V1μA（典型值） ?宽选择输出类型：CMOS输出，N沟道开漏输出，?倒置CMOS输出 ??宽选择封装类型：M，TO-92，和一个迷你型表面贴装 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| MN1382S-S |
SCS |
Panasonic |
06nopb |
SOT-23 |
400 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| MN1382S-N |
SCN |
Panasonic |
05+NOPB2K |
SOT-23 |
2400 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| MN1382S-K |
SCK |
Panasonic |
07NOPB |
SOT-23 |
2200 |
电源管理ICPower Management IC/PMIC-其它Other |
查看 |
|
|
|
