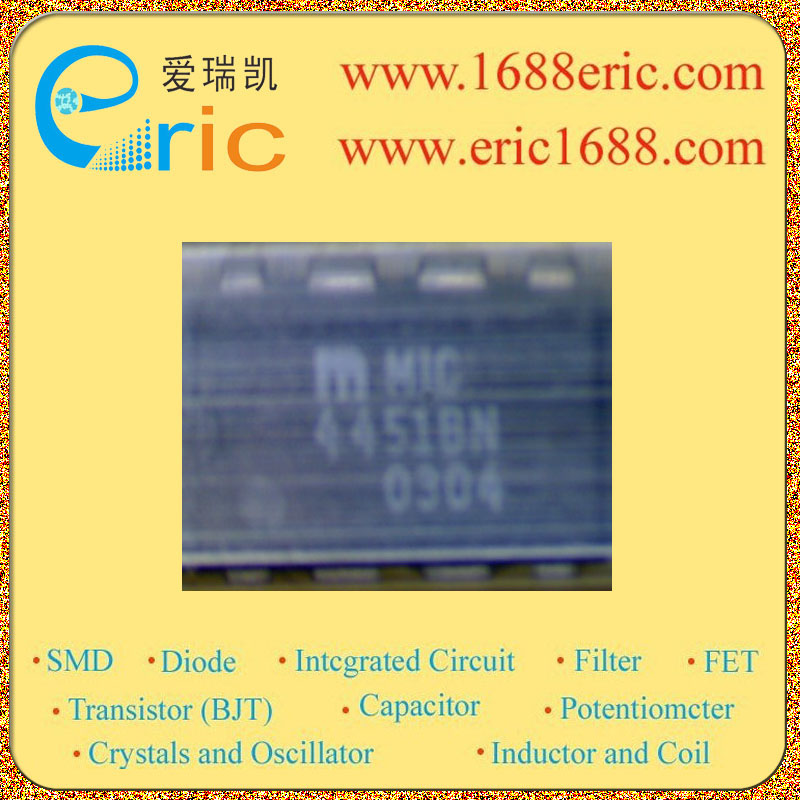

型号： |
MIC4451BN |
| 标记/丝印/代码/打字： |
MIC4451BN |
| 厂家： |
MICREL |
| 封装： |
PDIP-08L |
| 批号： |
03+ |
| 库存数量： |
0 |
| 所属分类： |
电源管理ICPower Management IC/PMIC
MOSFET/电桥驱动器MOSFET/Bridge Driver |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
MIC4451BN MIC4451BN 的参数 |
| 驱动器类型（配置/类型）
Type/Configuration |
低端 Low-Side |
| 驱动器数量（配置数）
Number of Configurations |
1 |
| 输入类型
Input Type |
反相 Inverting |
| 导通电阻
On-State Resistance |
|
| 峰值输出电流
Current - Peak |
12A |
| 输出端数量
Number of Outputs |
1 |
| 电源电压
Voltage - Supply |
4.5V ~ 18V |
| Description & Applications |
FEATURES ? 12A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process ? BiCMOS/DMOS Construction ? Input Withstands Negative Swing of Up to 5V ? Matched Rise and Fall Times ................................25ns ? High Peak Output Current ............................... 12A Peak ? Wide Operating Range ...............................4.5V to 18V ? High Capacitive Load Drive ............................62,000pF ? Low Delay Time .............................................. 30ns Typ ? Logic High Input for Any Voltage From 2.4V to VS ? Low Equivalent Input Capacitance (typ) ..................6pF ? Low Supply Current ...............450μA With Logic 1 Input ? Low Output Impedance ......................................... 1.0Ω ? Output Voltage Swing Within 25mV of Ground or VS Applications ? Switch Mode Power Supplies ? Motor Controls ? Pulse Transformer Driver ? Class-D Switching Ampli?ers |
| 描述与应用 |
特点 ?12A峰值低侧MOSFET驱动器双极/ CMOS/ DMOS工艺 ?的BiCMOS/ DMOS建设 ?输入可承受高达5V的负摆幅 ?匹配的上升和下降时间................................为25ns ?高峰值输出电流............................... 12A峰值 ?宽工作电压范围...............................4.5V至18V ?高容性负载驱动............................62,000 PF ?低的延迟时间.............................................. 30ns的典型 ?逻辑高输入任何电压从2.4V到VS ?低等效输入电容（典型值）..................6PF ?低电源电流...............450μA与逻辑1输入 ?低输出阻抗......................................... 1.0Ω ?输出电压摆幅内25mV的地面或VS 应用 ?开关电源 ?电机控制 ?脉冲变压器驱动器 ?D类开关放大器 |
