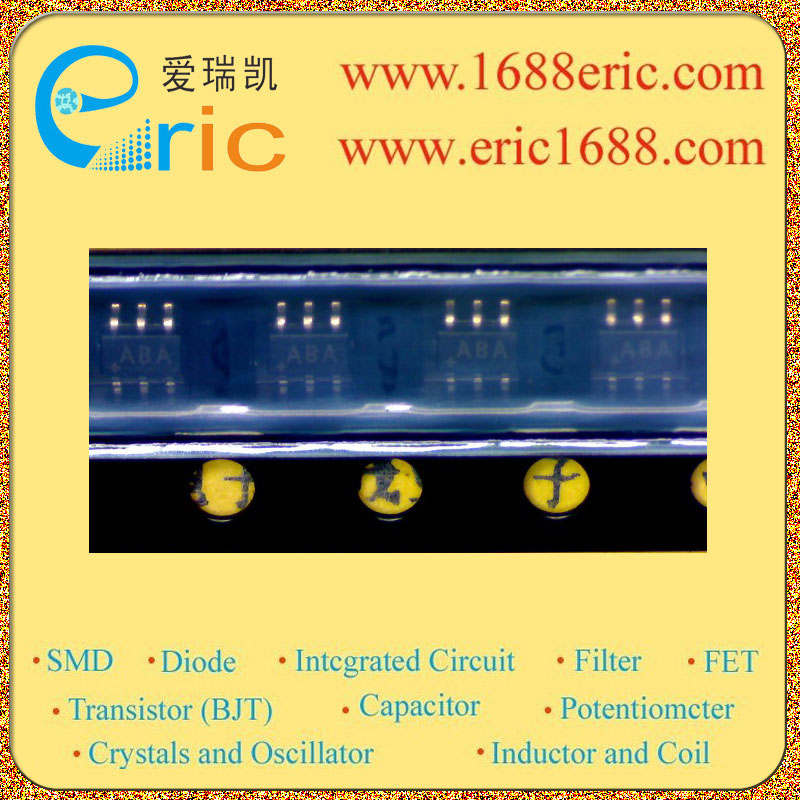

MAX4231AXT ABA 的参数 |
| 电路数
Number of Circuits |
1 |
| 转换速率
Slew Rate |
10V/μs |
| 增益带宽积
Gain Bandwidth Product |
10MHz |
| 共模抑制比
Common Mode Rejection Ratio |
46dB |
| -3db 带宽
-3db Bandwidth |
|
| 输入偏置电流
Current - Input Bias |
50PA |
| 输入失调电压
Voltage - Input Offset |
8mV |
| 电源电流
Current - Supply |
1.2mA |
| 电流 - 输出/通道
Current - Output / Channel |
200mA |
| 电压 - 电源，单/双 (±)
Voltage - Supply, Single/Dual (±) |
2.7 V ~ 5.5 V，±1.35 V ~ 2.5 V |
| Description & Applications |
High-Output-Drive, 10MHz, 10V/μs, Rail-to-Rail I/O Op Amps ;Portable/Battery-Powered Audio Applications Portable Headphone Speaker Drivers (32?) Audio Hands-Free Car Phones Laptop/Notebook Computers/TFT Panels Set-Top Boxes Digital-to-Analog Converter Buffers Transformer/Line Drivers Motor Drivers |
| 描述与应用 |
高输出驱动,10 mhz,10 v /μs, 轨到轨I / O放大器;便携式/电池驱动的音频应用程序 便携式耳机扬声器驱动程序(32?) 音频车载免提手机 笔记本电脑/笔记本电脑/ TFT面板 机顶盒 数模转换器缓冲区 变压器/线驱动器 电动机驱动 |
