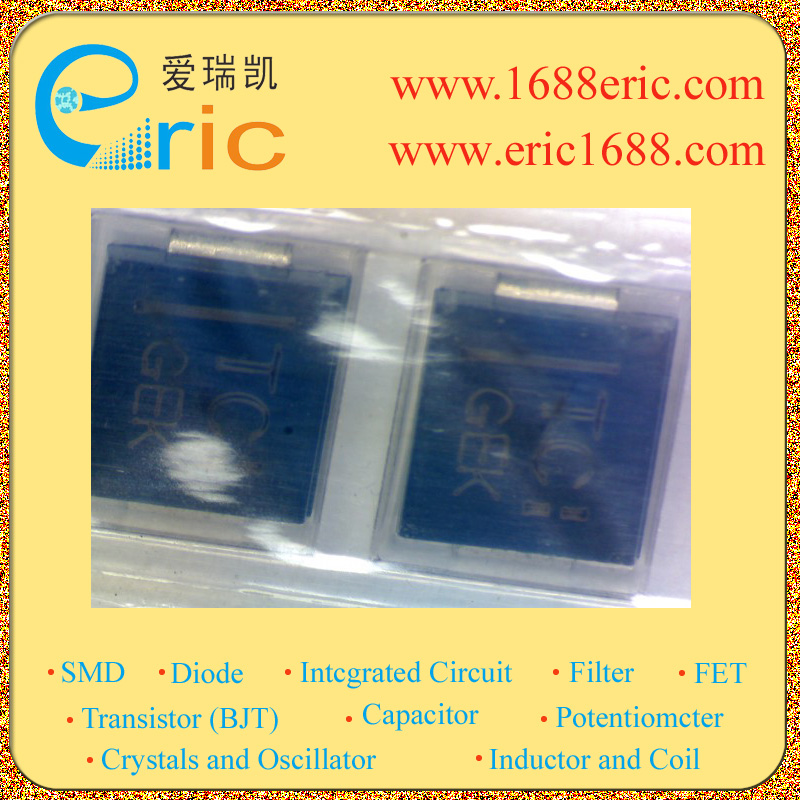

SMCJ14A-23-T71 GEK 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
14V |
| 反向击穿电压VBR
Breakdown Voltage |
16.4V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
1500W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
64.7A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Features ? 1500W Surface Mount Transient Voltage Suppressor ? Stand-off voltage from 5.0 to 170 volts ? Glass passivated junction ? 1500W peak pulse power capability with a 10/1000μs waveform, repetition rate(duty cycle): 0.01% ? Fast response time: typically less than 1.0ps from 0v to VBR ? Low incremental surge resistance, excellent clamping capability ? High temperature soldering guaranteed: 250°C/10 seconds at terminals ? This series is UL recognized under component index. File number E315008 ? RoHS Compliant |
| 描述与应用 |
特点 ?1500W表面贴装瞬态电压抑制器?待机电压从5.0到170伏特 ?玻璃钝化结 ?1500W峰值脉冲功率能力与10/1000μS波形，重复率（占空比）：0.01％ ?快速响应时间：通常小于1.0PS从0V到VBR ?低增量浪涌性，优良的钳位能力 ?高温焊接保证：250°C/10秒钟码头 该系列产品是根据成份指数UL认可。文件号E315008 ?符合RoHS标准 |
