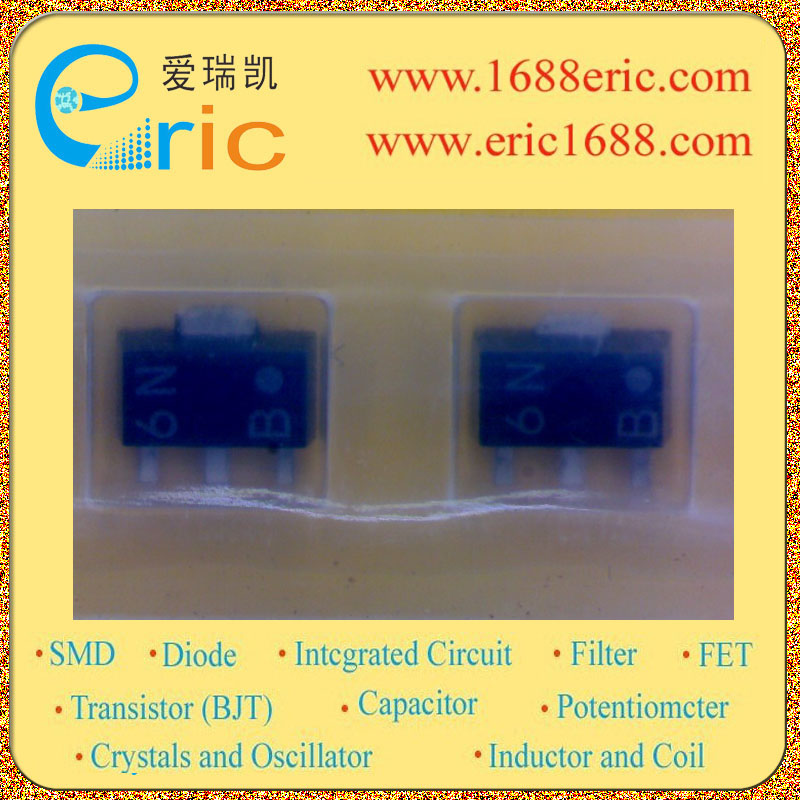

BCR08AS8T13204 B 的参数 |
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM
Repetitive peak reverse voltage/Repetitive peak off-state voltage |
600V |
| 通态平均电流IT(AV)
Average on-state current |
|
| 通态最大电流IT(RMS)
RMS on-state current |
0.8A |
| 栅极触发电压VGT
Gate trigger voltage |
2V |
| 栅极触发电流IGT
Gate trigger current |
5mA-10mA |
| 保持电流IH
Holding current |
|
| 峰值通态电压VTM
On-state voltage |
2V |
| 重复峰值断态电流IDRM
Repetitive peak off-state current |
1mA |
| 浪涌电流ITSM(50Hz、60Hz)
Current - Non Rep. Surge 50, 60Hz (Itsm) |
8A |
| Description & Applications |
Low Power Use NON-INSULATED TYPE,PLANAR PASSIVATION TYPE Hybrid ic,solid state relay,control of household equipment such as electric fan-washing machine,other general purpose control applications |
| 描述与应用 |
低功耗使用 非绝缘型，平面型钝化 混合集成电路，固态继电器，控制家用设备，如电风扇，洗衣机，其他通用控制应用 |
