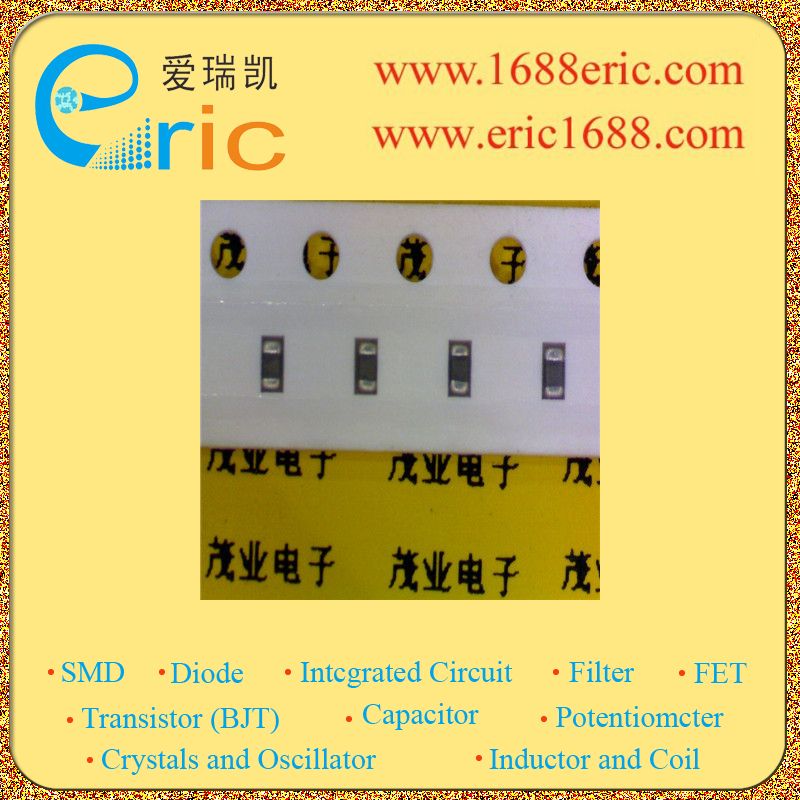

NTCG164BH103JT
 型号:  NTCG164BH103JT
 标记/丝印/代码/打字:
 厂家:  TDK
 封装:  0603-10K
 批号:  05+
 库存数量:  0
 所属分类:  电阻Resistor
  热敏Thermistor
    NTC
 技术文档PDF:  在线阅读

 在线购买

NTCG164BH103JT  的参数

电阻值(25℃) Resistance in Ohms @ 25°C 10kΩ
电阻容差 Resistance Tolerance 1%
B 值容差 B Value Tolerance 1%
B0/50
B25/50
B25/75
B25/85 3435K
B25/100
功耗 Power Dissipation
Description & Applications Small sized 0603 type (L0.6×W0.3×T0.3mm) series are available. ? Lead (Pb) free product. By using lead-less terminal electrodes and electroplating (Ni-Sn), this product realized excellent solderablity and soldering heat resistance, comparing with the conventional eutectic mixture solder and lead-free solder (Sn/Ag/Cu, etc.). ? Good solderability. ? Layered internal electrode structure. ? Product series provides a wide range of resistances and B constants. ? Good stability of resistance value after soldering. ? The 0603, 1608 and 1005 types provide 3 different shapes with identical resistance-temperature characteristics. ? Attains less that low floating capacitance (using TCXO) in the high frequency region.
描述与应用 0603型小型(L0.6×W0.3×T0.3mm)系列。 ?铅(Pb)免费产品。 通过使用铅较少的终端电极和电镀(镍锡),该产品实现出色的solderablity和焊接热 性,较与传统的低共熔混合物焊料和无铅焊料(锡/银/铜,等)。 ?良好的可焊性。 ?分层的内部电极的结构。 ?产品系列提供了广泛的电阻和B常数。 ?稳定性好,焊接后的电阻值。 ?0603,1608和1005提供了3个不同形状的相同的电阻 - 温度特性。 所获,低的浮动电容在高频区域(使用TCXO)。
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
NTCG164LG473JT1 NTCG164LH473 TDK 04+ 0603-47K 27500 电阻Resistor-热敏Thermistor-NTC 查看
NTCG164LG473JT1 TDK 05+ 0603-47K 0 电阻Resistor-热敏Thermistor-NTC 查看
NTCG164LH223HT1 TDK 05+ 0603-22K 12000 电阻Resistor-热敏Thermistor-NTC 查看
NTCG164LH223HT1 TDK 05+ 0603-22K 116000 电阻Resistor-热敏Thermistor-NTC 查看
NTCG164LH473JT1 TDK 03+ 0603-47K 40000 电阻Resistor-热敏Thermistor-NTC 查看
NTCG164BH103JT TDK 05+ 0603-10K 0 电阻Resistor-热敏Thermistor-NTC 查看
NTCG164LH473JT1 TDK 05+ 0603-47K 0 电阻Resistor-热敏Thermistor-NTC 查看
NTCG164BH103JT TDK 05+ 0603-10K 4000 电阻Resistor 查看
