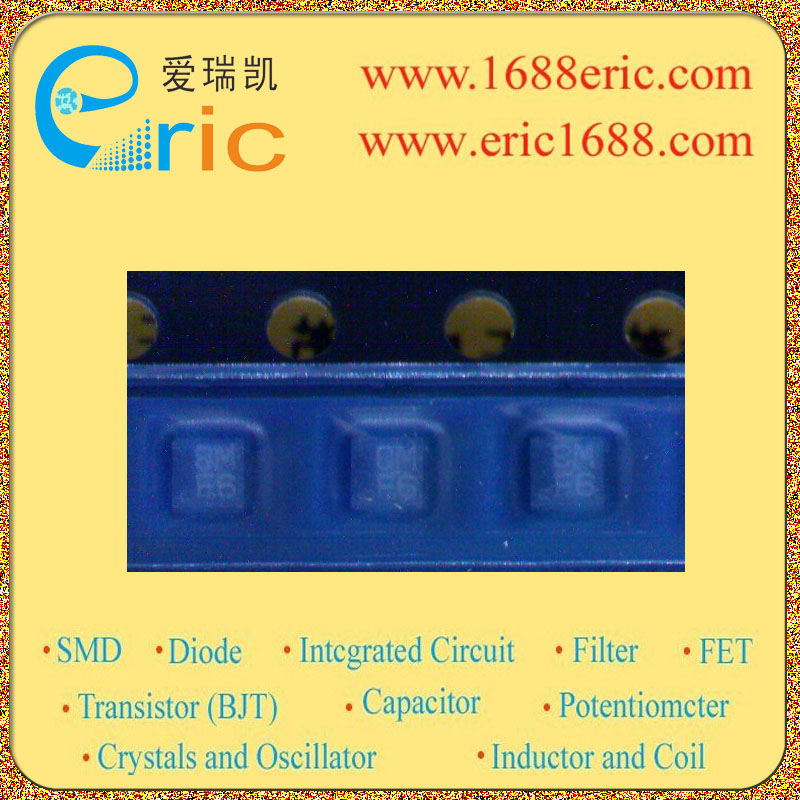

GMF05LC-HS3-GS08 F6 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5V |
| 反向击穿电压VBR
Breakdown Voltage |
6V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
70W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
5A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
5-Line ESD-Protection Diode Array in LLP75-6A；Features ? Ultra compact LLP75-6A package ? 5-line ESD-protection ? Low leakage current IR < 0.1 μA ? Low load capacitance of typ. 43 pF at VR = 0 V ? ESD-immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge ? Working voltage range VRWM = 5 V ? Lead (Pb)-free component ? Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC |
| 描述与应用 |
5线ESD保护二极管阵列LLP75-6A;特性 ?超小型LLP75-6A封装 ?5线ESD保护 ?低漏电流IR<0.1μA ?低负载??电容（典型值）。 43 pF@VR =0 V ?防静电抗扰度符合。 IEC61000-4-2 ±30 kV接触放电 ±30 kV空气放电 ?工作电压范围VRWM=5 V ?无铅组件 ?组件符合RoHS 2002/95/EC和WEEE 2002/96/EC |
