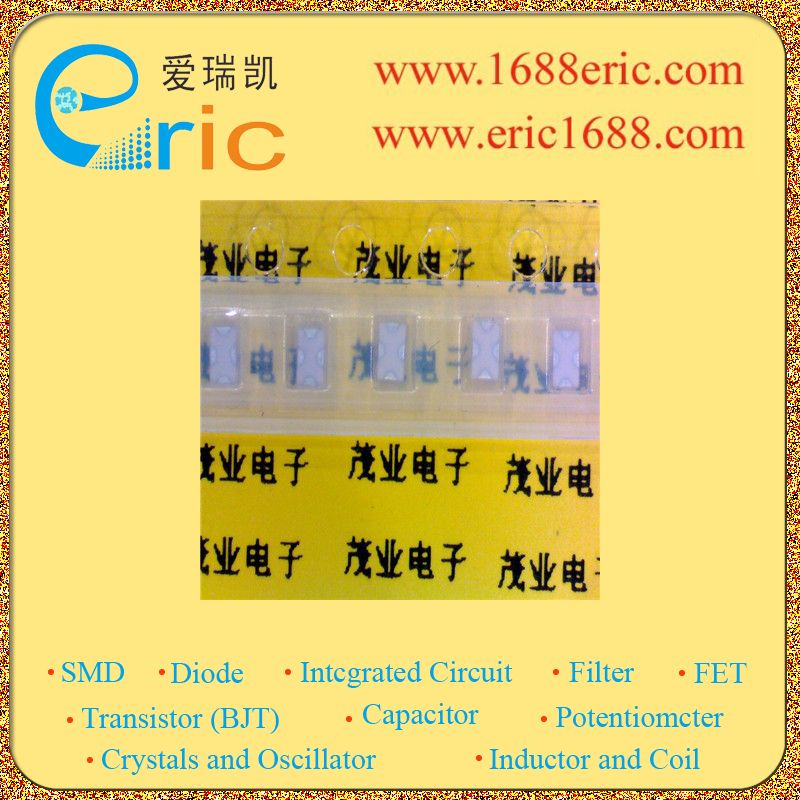

型号： |
NFM39R12C102T1M00-54 |
| 标记/丝印/代码/打字： |
NFM21CC102R1C3D |
| 厂家： |
MURATA |
| 封装： |
0805-102 |
| 批号： |
05+ |
| 库存数量： |
0 |
| 所属分类： |
晶振滤波Crystal Oscillator and Filter
滤波Filter
馈通式电容Feed Through Capacitor |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
NFM39R12C102T1M00-54 NFM21CC102R1C3D 的参数 |
| 电容值
Capacitance |
1000pF |
| 电压
Voltage |
50V |
| 电流
Current |
300mA |
| DC电阻(DCR)
DC Resistance (DCR) |
600mΩ |
| Description & Applications |
Chip Solid EMIFIL ? NFM39R/40R/41R Series The chip solid EMIFIL ? NFM39R/40R/41R series is a chip type 3-terminal EMI suppression filter. It can reduce residual inductance to an extremely low level making it excellent for noise suppression at high frequencies. FEATURES 1. Small and low profile of 2.0mm x 1.25mm x 0.5mm (NFM39R) enables high density mounting. 2. The 3 terminal structure enables high performance in high frequency range. 3. Use original electrode structure which realize excellent solderability. APPLICATIONS PCs and penpherals which emit high amount of noise Compact size equipment such as PDA, PC card and mobile telecommunication equipments Severe EMI suppression and high impedance circuits such as digital circuits |
| 描述与应用 |
片状实心EMIFIL?NFM39R/40R/41R系列 该芯片的固体EMIFIL?NFM39R/40R/41R系列是一个3端片式EMI静噪滤波器。它可以残留电感降低到极低的水平，使得它非常适合在高频率的噪音抑制。 特点 1。小型和低调2.0mm的所述1.25毫米的×0.5毫米（NFM39R）实现高密度安装。 2。 3端子结构在高频范围内实现高性能。 3。使用独创电极结构，实现优良的可焊性。 应用 的PC和penpherals发出高噪音量 小型设备如PDA，PC卡和移动通信设备 高EMI抑制和高阻抗电路，如数字电路 |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
