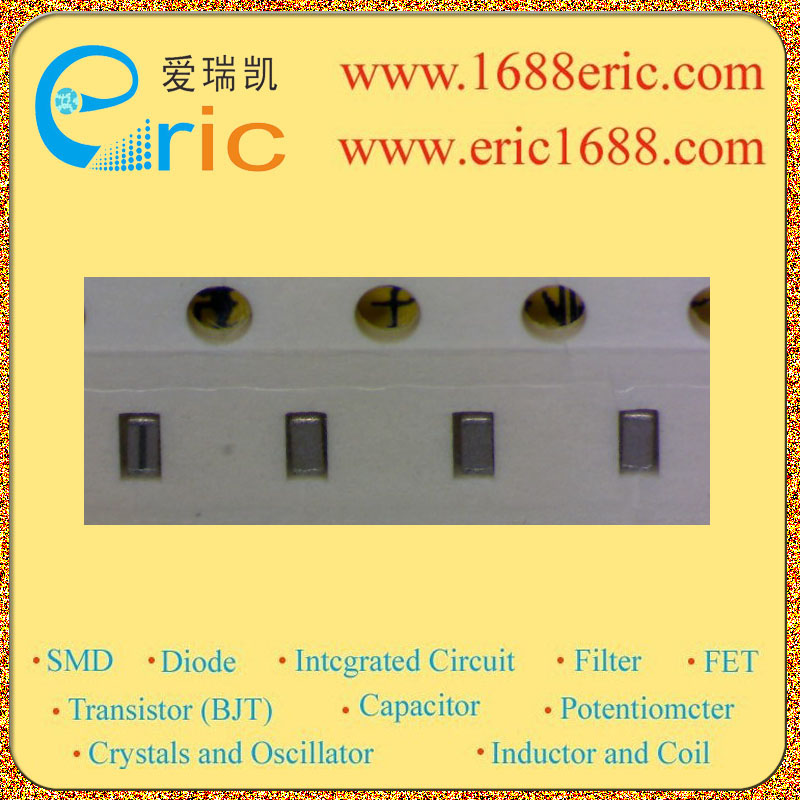

B72500D50H160 同CDS3C05HDML1 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5.6V |
| 反向击穿电压VBR
Breakdown Voltage |
6.4V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
1000W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
30A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Reliable ESD protection of single lines；Features ?ESD protection according to IEC 61000-4-2 (Level 4) ?Endurance specification up to 3000 ESD pulses (IEC 61000-4-2 Level 4) ?Suitable for uni- and bidirectional lines ?Bidirectional ESD protection in a two-pin device ?Routes all ESD events, both positive and negative, safely to ground ?Suitable for DC working voltages up to 22 V ?No derating of maximum ratings up to 85 °C ?Surface mount package in 0603 case size ?Extremely fast response time < 0.5 ns ?Lead free nickel barrier terminations |
| 描述与应用 |
可靠的ESD单线路保护;特性 ?ESD保护，符合IEC 61000-4-2（4级） ?耐力规格3000 ESD脉冲（IEC61000-4-2第4级） ?适用于单向和双向线 ?两引脚的装置的双向ESD保护 ?路由所有ESD事件，无论是正面和负面的，安全接地 ?适用于直流工作电压高达22 V ?无降至85°C的最大额定值 ?在0603封装尺寸的表面贴装封装 ?极快的响应时间<0.5ns ?无铅镍挡板终端 |
