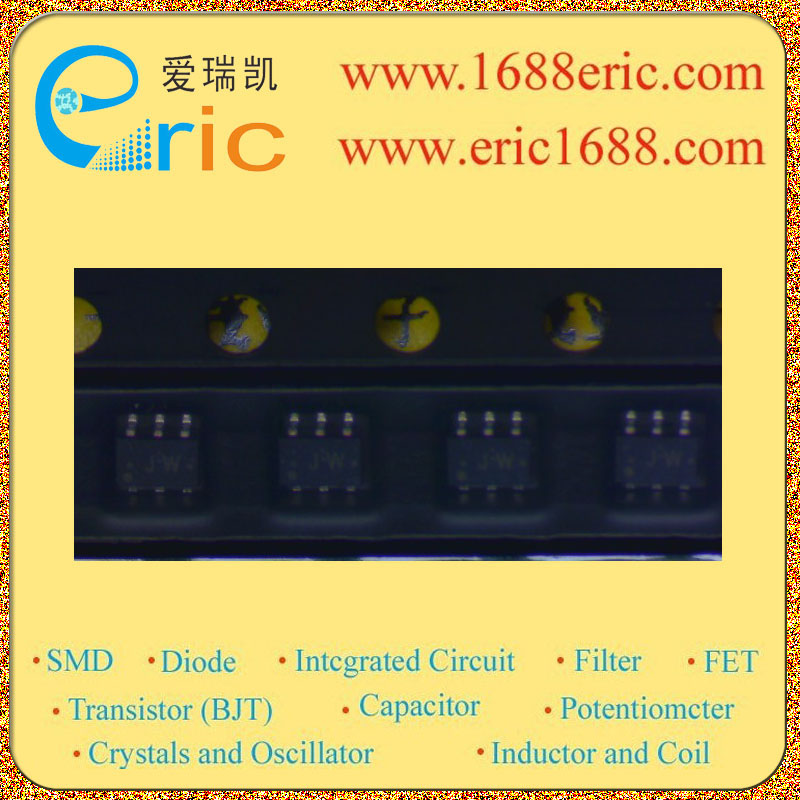

型号： |
TC7SB3157CFU |
| 标记/丝印/代码/打字： |
JW |
| 厂家： |
TOSHIBA |
| 封装： |
SOT-363/SC70-6/US6 |
| 批号： |
11+NOPB |
| 库存数量： |
2800 |
| 所属分类： |
集成电路ICIntegrated Circuit（IC）
逻辑电路Logic circuit
解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
TC7SB3157CFU JW 的参数 |
| 类型
Type |
多路复用器/多路分解器 Multiplexer/Demultiplexer |
| 电路
Circuit |
1 x 2:1 |
| 独立电路
Independent Circuits |
1 |
| 输出高，低电流
Current - Output High, Low |
|
| 单电源
Voltage Supply Source |
单电源 Single Supply |
| 电源电压
Voltage - Supply |
1.65 V ~ 5.5 V |
| Description & Applications |
The TC7SB3157CFU is a high-speed CMOS single 1-of-2 multiplexer/demultiplexer. The low ON resistance of the switch allows connections to be made with minimal propagation delay time.This device is 1 to 2 multiplexer/demultiplexer controlled by the select input (S). The A input is connected to B1or B2 output based on the selection of Control input (S).All inputs are equipped with protection circuits against static discharge. Operating voltage: VCC = 1.65 to 5.5 V ON capacitance: CI/O = 15 pF Switch On (typ.) @VCC = 5.0 V ON resistance: RON = 4 ? (typ.) @VCC = 4.5 V, VIS = 0 V ESD performance: Machine model ≥ ±200 V, Human body model ≥ ±2000 V Package: US6 |
| 描述与应用 |
TC7SB3157CFU是一个高速CMOS单1-2复用器/多路分解器。允许以最小的传播延迟时间连接到的低导通电阻的开关。这个设备是被选择输入（S）所控制的1?2多路复用器/多路分解器。A输入连接到B1或B2输出的基于控制输入（S）的选择。所有输入都配有保护电路防止静电放电 工作电压：VCC= 1.65至5.5 V 导通电容：CI/O=15 PF开关（典型值）@ VCC= 5.0 V 导通电阻RON=4Ω（典型值）@ VCC= 4.5 V，VIS =0 V ESD性能：机器型号≥±200 V，人体模式≥±2000 V 包装：US6 |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
