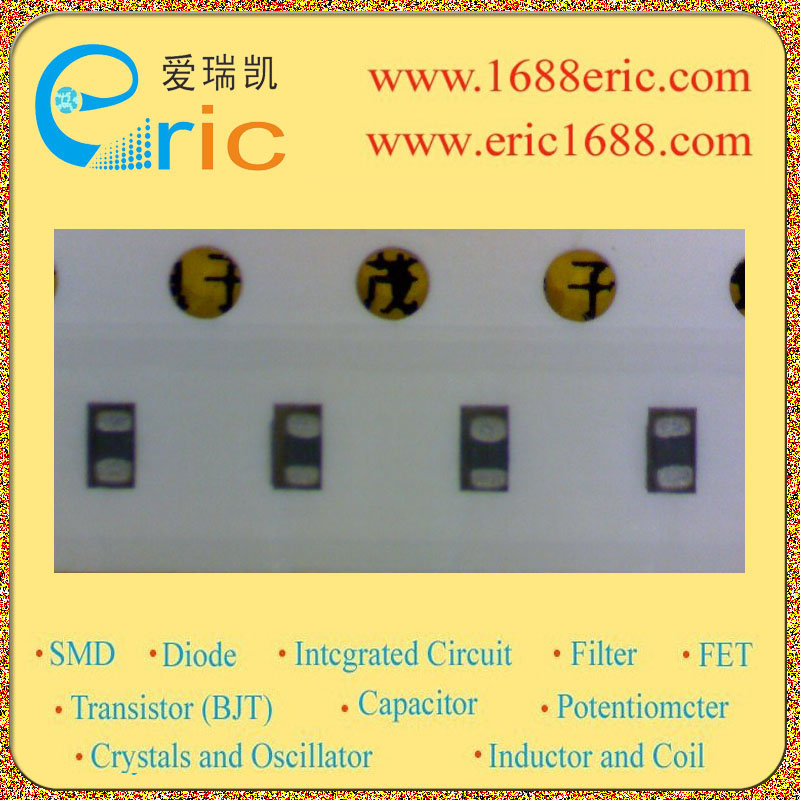

NTH5G16P33B103F07TH(NCP18XH103F03RB) NCP18XH103F03RB 的参数 |
| 电阻值(25℃)
Resistance in Ohms @ 25°C |
10kΩ |
| 电阻容差
Resistance Tolerance |
1% |
| B 值容差
B Value Tolerance |
1% |
| B0/50 |
|
| B25/50 |
|
| B25/75 |
|
| B25/85 |
3380K |
| B25/100 |
|
| 功耗
Power Dissipation |
|
| Description & Applications |
0402, 0603, 0805 package available High humidity resistant due to unique inner construction Excellent long time aging stability High accuracy: ±1% in both resistance and B-constant available Good soldering strength by five faces electrode Dimensions conform to JIS c 0806 |
| 描述与应用 |
耐高湿度，由于独特的内部构造 卓越的长期老化稳定性 高精度：±1％电阻及B常数可用 由五个面电极的焊接强度好 尺寸符合JIS C0806 |
