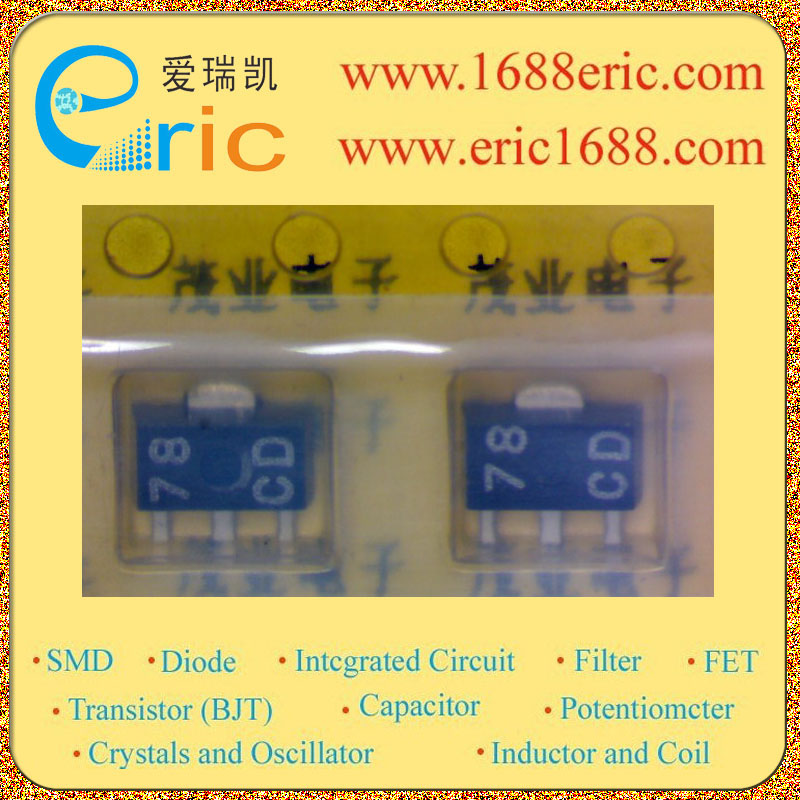

型号： |
CR05AS-8-A |
| 标记/丝印/代码/打字： |
CD |
| 厂家： |
RENESAS |
| 封装： |
SOT-89 |
| 批号： |
06+ROHS |
| 库存数量： |
0 |
| 所属分类： |
可控硅/晶闸管Triac/Thyristor,SCR
单向可控硅Thyristor,SCR |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
CR05AS-8-A CD 的参数 |
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM
Repetitive peak reverse voltage/Repetitive peak off-state voltage |
400V |
| 通态平均电流IT(AV)
Average on-state current |
0.5A |
| 通态最大电流IT(RMS)
RMS on-state current |
0.79A |
| 栅极触发电压VGT
Gate trigger voltage |
0.8V |
| 栅极触发电流IGT
Gate trigger current |
1μA-100μA |
| 保持电流IH
Holding current |
3mA |
| 峰值通态电压VTM
On-state voltage |
1.9V |
| 重复峰值断态电流IDRM
Repetitive peak off-state current |
0.1mA |
| 浪涌电流ITSM(50Hz、60Hz)
Current - Non Rep. Surge 50, 60Hz (Itsm) |
10A |
| Description & Applications |
Low Power Use For Solid state relay, strobe flasher, igniter, and hybrid IC Non-Insulated Type Planar Passivation Type |
| 描述与应用 |
低功耗使用 用于固态继电器，频闪闪光器，点火器和混合集成电路 非绝缘型 平面钝化类型 |
