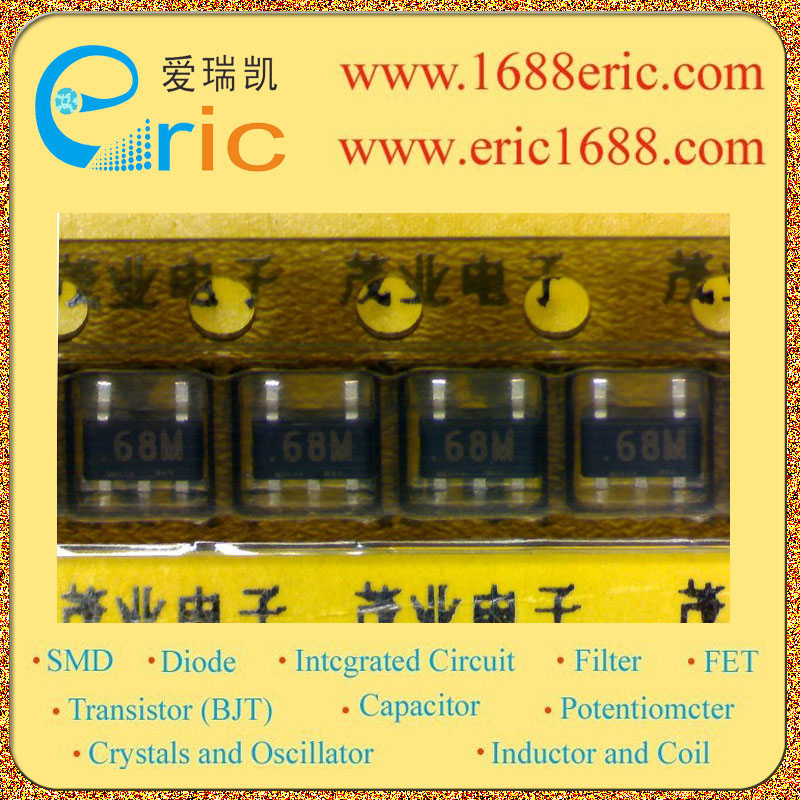

NNCD6.8MG 68M 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
|
| 反向击穿电压VBR
Breakdown Voltage |
6.8V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
2W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
0.2W/200mW |
| Description & Applications |
FEATURES ? E.S.D NOISE CLIPPING DIODES ? LOW CAPACITANCE TYPE ? ELECTROSTATIC DISCHARGE NOISE CLIPPINGDIODES(QUARTO TYPE: COMMON ANODE)3-PIN MINI MOLD ? Based on the electrostatic discharge immunity test (IEC61000-4-2), the product assures the minimum endurance of 30 kV. ? Capacitance is small with 20 pF TYP. (at VR = 0 V, f = 1 MHz). It is excellent in the frequency characteristic. ? With 4 elements mounted (common anode) in the SC-74A package, that product can cope with high density assembling. APPLICATIONS ? External interface circuit E.S.D. protection in the high-speed data communication bus such as USB. |
| 描述与应用 |
特点 ?ESD噪音限幅二极管 ?低电容静电放电噪声CLIPPINGDIODES（四开型：共阳极）3-PIN MINI模具 ?基于静电放电抗扰度试验（IEC61000-4-2），产品保证30千伏最小耐力。 ?小电容与20 pF TYP。 （在VR =0 V，F =1兆赫）。它具有优异的频率特性。 ?安装4个元素（共阳极），SC-74A包，该产品可以应对高密度组装。 应用 ?外部接口电路E.S.D.在高速数据保护比如USB的通信总线。 |
