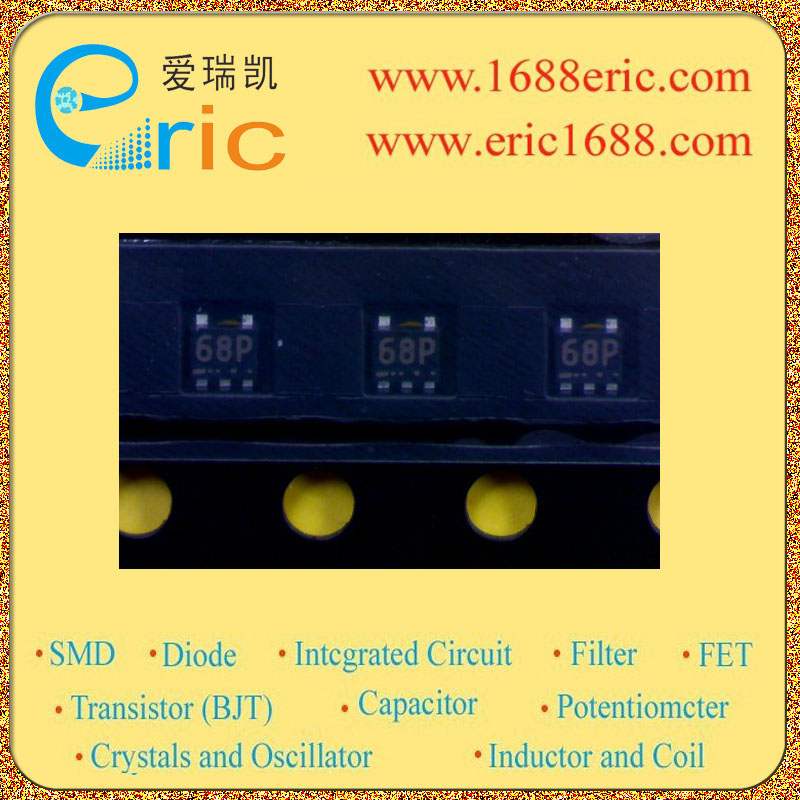

NNCD6.8PL 68P 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
|
| 反向击穿电压VBR
Breakdown Voltage |
6.8V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
85W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
0.2W/200mW |
| Description & Applications |
FEATURES ? E.S.D NOISE CLIPPING DIODES ? 5-PIN SUPER SMALL MINI MOLD (FLAT LEAD TYPE)ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODE(QUAD TYPE: COMMON ANODE) ? Based on the electrostatic discharge immunity test (IEC61000-4-2),the product assures the minimum endurance of 30 kV. ? With four elements in the super mini mold package, the product canachieve high density and automatic packaging. APPLICATIONS ? External interface circuit ESD absorption ? Circuit for surge absorber |
| 描述与应用 |
特点 ?ESD噪音限幅二极管 ?5-PIN超小型迷你模具（扁平引线型）静电放电噪声削波二极管（四型：共阳极） ?基于静电放电抗扰度试验（IEC61000-4-2），产品保证了最低的续航能力为30千伏。 ?在超小型模具包有四个要素，该产品可实现高密度和自动包装。 应用 ?外部接口电路的ESD吸收 ?浪涌吸收电路 |
