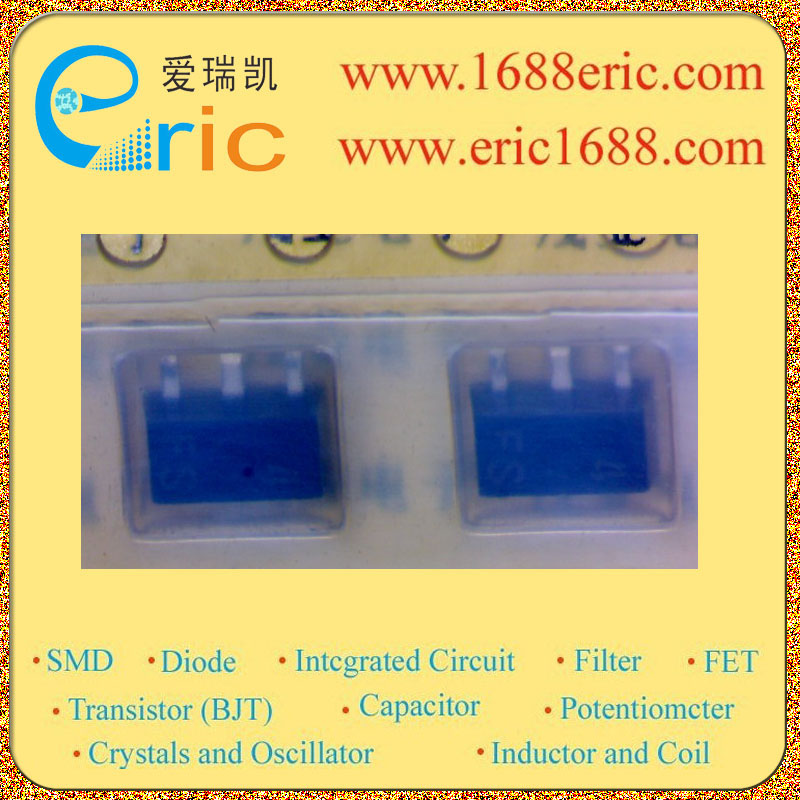

2SB1519
 型号:  2SB1519
 标记/丝印/代码/打字:  FS
 厂家:  HITACHI
 封装:  SOT-89/SC-62
 批号:  05+
 库存数量:  0
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  PNP
 技术文档PDF:  在线阅读

 在线购买

2SB1519 FS 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) -50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) ?50V
集电极连续输出电流IC Collector Current(IC) -2A
截止频率fT Transtion Frequency(fT)
直流电流增益hFE DC Current Gain(hFE) 120~300
管压降VCE(sat) Collector-Emitter SaturationVoltage -300mV/-0.3V
耗散功率Pc PoWer Dissipation 1W
Description & Applications PNP Silicon epitaxial planar transistor High Voltage Amplifier Features Low saturation voltage Large current capacitance
描述与应用 PNP硅外延平面晶体管 高电压放大器 特点 低饱和电压 大电流容量
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
2SB1516 B1516 ROHM 05+ TO-252/DPAK/SC-63/CPT3 1490 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1519 FS HITACHI 05+ SOT-89/SC-62 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1535 B1535 ROHM 05+ TO-252/DPAK/SC-63/CPT3 2000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1561-Q BLQ ROHM 05+ SOT-89/SC-62/MPT 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1561-Q BLQ ROHM 05+ SOT-89/SC-62/MPT 250 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1571 FY NEC 05+ SOT-89/SC-62 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1571 FY NEC 05+ SOT-89/SC-62 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1571 FZ NEC 05+ SOT-89/SC-62 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1571 FZ NEC 05+ SOT-89/SC-62 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1572 HZ NEC 04+ SOT-89/SC-62 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1572 HY NEC 05+NOPB800 SOT-89/SC-62 5700 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1572 HY NEC 07+1RNOPB SOT-89/SC-62 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1572 HZ NEC 05+ SOT-89/SC-62 200 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1572 HX NEC 07NOPB SOT-89/SC-62 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1578 GB1 NEC 05+ SC-84 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1578 GB1 NEC 05+ SC-84 800 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1580 BN ROHM 05+NOPB SOT-89/SC-62/MPT 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1580 BN ROHM 05+ SOT-89/SC-62/MPT 179 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1590K T146Q BKQ ROHM 05+1R06nopb SOT-23/SC-59/SMT3 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SB1590K T146Q BKQ ROHM 05+nopb106 SOT-23/SC-59/SMT3 242 三极管Bipolar Junction Transistors(BJT)-PNP 查看
