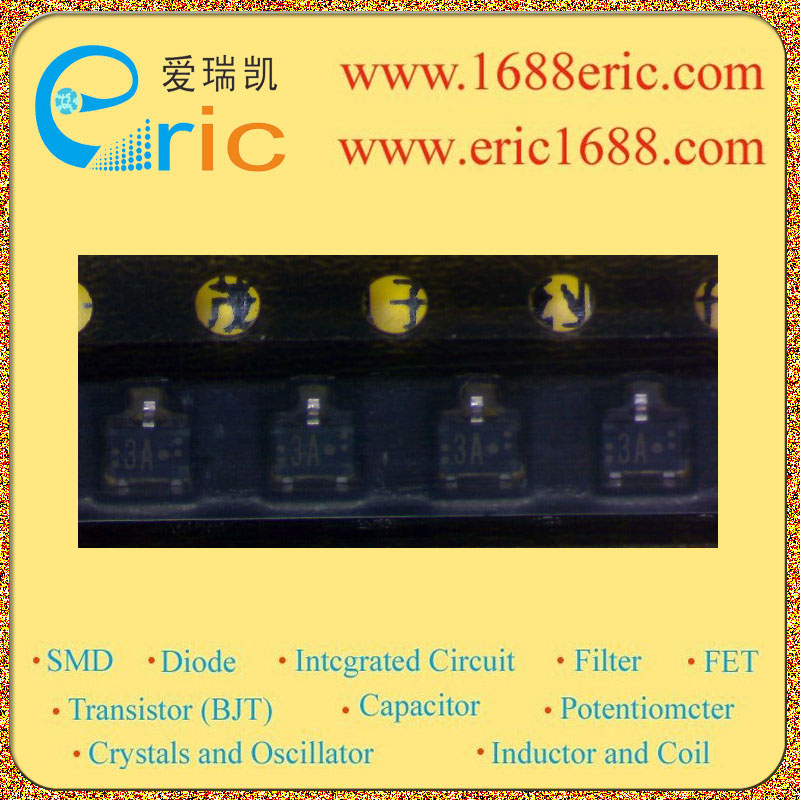

2SC5472 3A 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
9.0V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
6V |
| 集电极连续输出电流IC
Collector Current(IC) |
30mA |
| 截止频率fT
Transtion Frequency(fT) |
12Ghz |
| 直流电流增益hFE
DC Current Gain(hFE) |
80~200 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc
Power Dissipation |
150mW/0.15W |
| Description & Applications |
Silicon NPN epitaxial planer type For low-voltage low-noise high-frequency oscillation features ? High transition frequency fT ? High gain of 8.2 dB and low noise of 1.8 dB at 3 V ? Optimum for RF amplification of a portable telephone and pager ? S-mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 |
NPN硅外延平面型 对于低电压低噪声高频振荡 特点 ?高转换频率fT 在3 V?高增益8.2分贝和1.8分贝的低噪音 优化的便携式电话和寻呼机的RF放大 ?S-迷你型包装，使瘦身的设备和 通过自动插入磁带包装和杂志 填料 |
