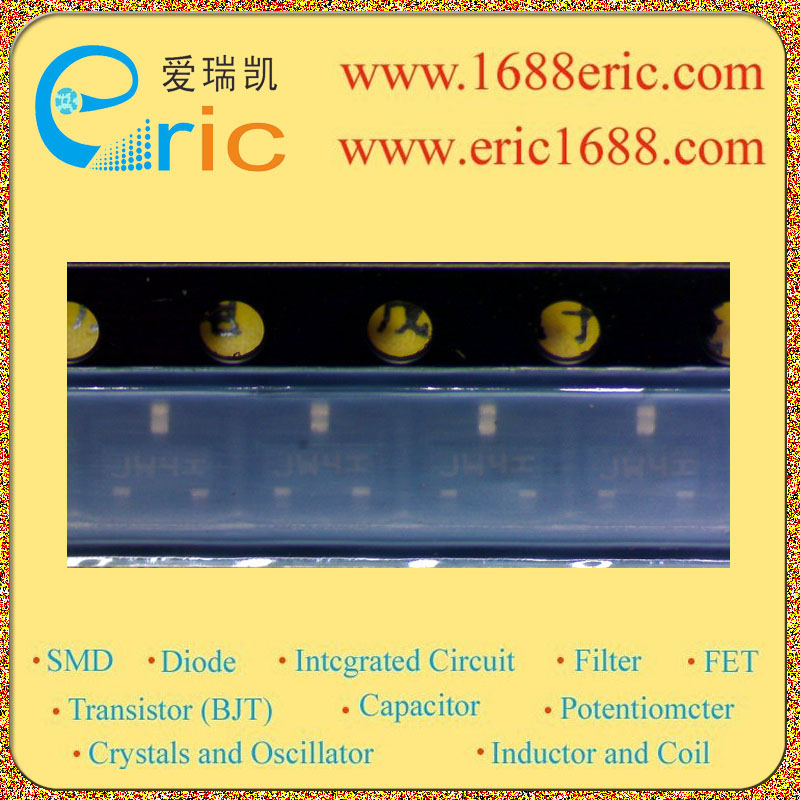

型号: |
NUD3105LT1 |
标记/丝印/代码/打字: |
JW4 |
厂家: |
ON |
封装: |
SOT-23/SC-59 |
批号: |
04+ |
库存数量: |
3300 |
所属分类: |
场效应管FET MOSFET-N沟道MOSFET N-Channel |
技术文档PDF: |
在线阅读 |
|
|
在线购买 |
|
|
|
|
NUD3105LT1 JW4 的参数 |
最大源漏极电压Vds
Drain-Source Voltage |
6V |
最大栅源极电压Vgs(±)
Gate-Source Voltage |
6V |
最大漏极电流Id
Drain Current |
500mA/0.5A |
源漏极导通电阻ΩRds
DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance |
0.9Ω/Ohm 500mA,5V |
开启电压Vgs(th)
Gate-Source Threshold Voltage |
0.8-1.4V |
耗散功率Pd
Power Dissipation |
225mW/0.225W |
Description & Applications |
Integrated Relay, Inductive Load Driver This device is used to switch inductive loads such as relays, solenoids incandescent lamps , and small DC motors without the need of a free?wheeling diode. The device integrates all necessary items such as the MOSFET switch, ESD protection, and Zener clamps. It accepts logic level inputs thus allowing it to be driven by a large variety of devices including logic gates, inverters, and microcontrollers. Integrated Relay, Inductive Load Driver This device is used to switch inductive loads such as relays, solenoids incandescent lamps , and small DC motors without the need of a free?wheeling diode. The device integrates all necessary items such as the MOSFET switch, ESD protection, and Zener clamps. It accepts logic level inputs thus allowing it to be driven by a large variety of devices including logic gates, inverters, and microcontrollers. Integrated Relay, nductive Load Driver This device is used to switch inductive loads such as relays, solenoids incandescent lamps , and small DC motors without the need of a free?wheeling diode. The device integrates all necessary items such as the MOSFET switch, ESD protection, and Zener clamps. It accepts logic level inputs thus allowing it to be driven by a large variety of devices including logic gates, inverters, and microcontrollers. Features ? Provides a Robust Driver Interface Between DC Relay Coil and Sensitive Logic Circuits ? Optimized to Switch Relays from 3.0 V to 5.0 V Rail ? Capable of Driving Relay Coils Rated up to 2.5 W at 5.0 V ? Internal Zener Eliminates the Need of Free?Wheeling Diode ? Internal Zener Clamp Routes Induced Current to Ground for Quieter Systems Operation ? Low VDS(ON) Reduces System Current Drain ? Pb?Free Package is Available |
描述与应用 |
综合继电器, 感性负载驱动装置 这个装置是用来切换电感的负载,如继电器, 螺线管??白炽灯,小型直流电动机,无需 一个续流二极管。该器件集成了所有必要的项目 如MOSFET开关,ESD保护,和齐纳钳位。它 接受逻辑电平输入,从而使其能够带动一个大 各种设备,包括逻辑门电路,逆变器,微控制器。 ?提供了强大的驱动器之间的接口直流继电器线圈和 敏感的逻辑电路 ?优化从3.0 V至5.0 V轨切换继电器 ?能够驱动继电器线圈额定可达2.5 W,5.0 V ?内部齐纳消除了需要免费续流二极管 ?内部齐纳钳位感应电流接地安静的路线 系统操作 ?低VDS(ON)降低了系统的漏电流 ?无铅包装是可用 |
技术文档PDF下载 |
在线阅读 |
|
|
|
|
