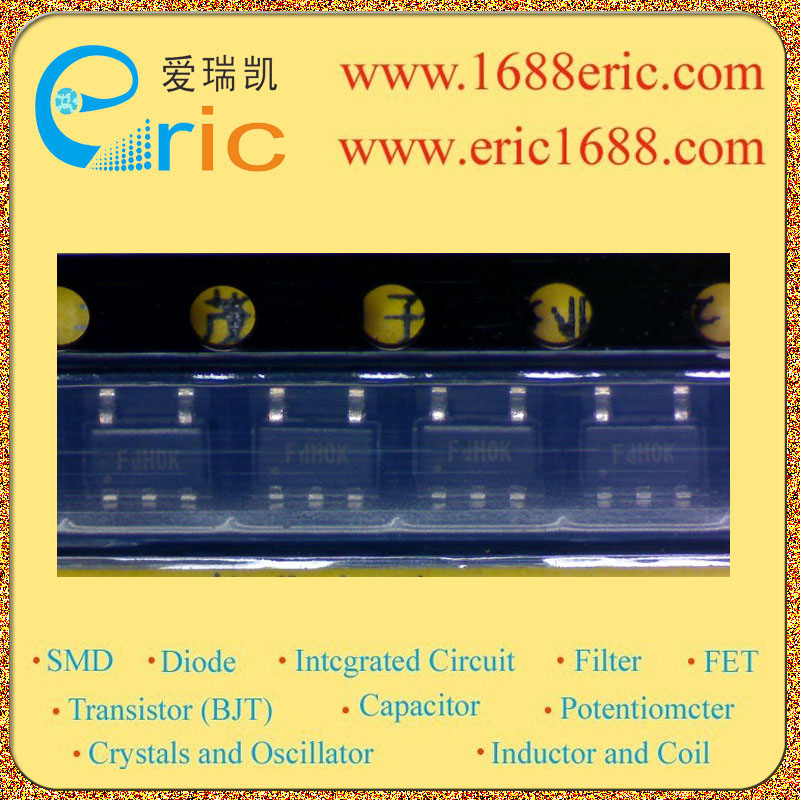

FP6133-25S5PTR
 型号:  FP6133-25S5PTR
 标记/丝印/代码/打字:  FdHOK
 厂家:  FITIPOWER
 封装:  SOT-153/SOT23-5
 批号:  07+
 库存数量:  3000
 所属分类:  电源管理ICPower Management IC/PMIC
  电压调整器/稳压Voltage Regulator
    低压差LDOLow Dropout (LDO)
 技术文档PDF:  在线阅读

 在线购买

FP6133-25S5PTR FdHOK 的参数

电路数量 Number of Regulators 1
输入电压VIN Voltage - Input 6V
输出电压VOUT Voltage - Output 2.5V
输出电流Io Current - Output 300mA/0.3A
最大压降VDO Voltage - Dropout 460mV/0.46V
带使能脚EN/CE(ON/OFF功能) With Enable Pin 无 No
最大耗散功率Pd Power dissipation
Description & Applications 300mA Low Dropout Linear Regulator with Shutdown ;?Low Dropout Voltage of 250mV at 300mA ?High Ripple Rejection at 60 dB ? Guaranteed 60mA Output Current ?Very Low Quiescent Current at 30μA ?Max. ± 2% Output Voltage Accuracy ?Needs Only 1μF Capacitor for Stability ?Thermal Shutdown Protection ?Current Limit Protection ?Active Low Shutdown Control ? Low-ESR Ceramic Capacitor for Output Stability ?Tiny Packages: SOT-23-5, SC-70-5 and SC-82 ?RoHS Compliant ?DSC ?Wireless Devices ?LCD Modules ?Battery Power Systems ?Card Readers ?PDA
描述与应用 300mA的低压差线性稳压器关机;?在300mA250mV的低压差 ?在60分贝的高纹波抑制 ?保证60mA输出电流 ?非常低的静态电流为30μA ?最大。 ±2%的输出电压精度 ?只需要1μF电容器的稳定性 ?热关断保护 ?电流限制保护 ?低电平关断控制 ?低ESR陶瓷电容输出稳定性 ?小型封装:SOT-23-5,SC-70-5,SC-82 ?符合RoHS标准 ?DSC ?无线设备 ?液晶显示模块 ?电池供电系统 ?读卡器 ?PDA
技术文档PDF下载 在线阅读
